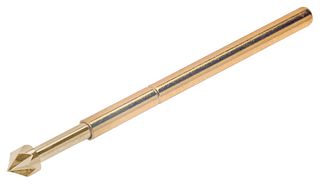

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | HARWIN |
|---|---|
| Manufacturer Part No | P25-5223Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 9960252 |
| Your Part Number | |
| Technical Datasheet |
658 In Stock
1,000 more incoming. You can reserve stock now
149 Delivery in 1-2 Business Days(SG stock)
509 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM9.560 |
| 50+ | RM8.720 |
| 100+ | RM8.550 |
Price for:Each
Minimum: 1
Multiple: 1
RM9.56
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | HARWIN |
|---|---|
| Manufacturer Part No | P25-5223Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 9960252 |
| Technical Datasheet | |
| Connector Type | Spring Probe |
| Centreline Spacing | 2.54mm |
| Connector Tip Style | Star |
| Current Rating | 3A |
| Overall Length | 24.7mm |
| Spring Force Initial | - |
| Spring Force Working Travel | - |
| Product Range | - |
| SVHC | Lead (04-Feb-2026) |
Product Overview
P25-5223 is a ATE two-part spring probe. Use with receptacle / sleeve S25-022, S25-212 or S25-512. See instruction sheet IS-41 for advice on use.
- 2.54mm minimum pitch, Ø1.8mm star head
- Gold finish on probe head and body
- Beryllium copper plunger, brass barrel, stainless steel spring
- 50mohm maximum contact resistance
- 3A current rating
- Operating temperature range from -40°C to +180°C
Notes
To be used with sleeve S25-XX2. Suitable for a minimum distance between centres of 2.54mm.
Technical Specifications
| Connector Type | Spring Probe |
|---|---|
| Connector Tip Style | Star |
| Overall Length | 24.7mm |
| Spring Force Working Travel | - |
| SVHC | Lead (04-Feb-2026) |
| Centreline Spacing | 2.54mm |
|---|---|
| Current Rating | 3A |
| Spring Force Initial | - |
| Product Range | - |
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000907 |
