HR10-7P-4P(73)
Circular Connector, Miniature Circular Connector, HR10 Series, Cable Mount Plug, 4 Contacts

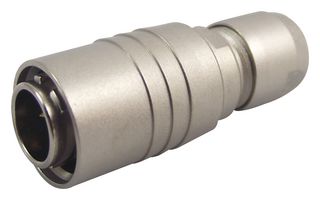

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | HIROSE / HRS |
|---|---|
| Manufacturer Part No | HR10-7P-4P(73)Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 1077702 |
| Product Range | HR10 Series |
| Also Known As | 110-0021-6-73 |
| Your Part Number | |
| Technical Datasheet |
576 In Stock
Need more?
35 Delivery in 1-2 Business Days(SG stock)
541 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM93.050 |
| 10+ | RM92.110 |
| 25+ | RM91.160 |
| 100+ | RM83.090 |
| 250+ | RM75.020 |
| 500+ | RM73.520 |
Price for:Each
Minimum: 1
Multiple: 1
RM93.05
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | HIROSE / HRS |
|---|---|
| Manufacturer Part No | HR10-7P-4P(73)Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 1077702 |
| Product Range | HR10 Series |
| Also Known As | 110-0021-6-73 |
| Technical Datasheet | |
| Connector Type | Miniature Circular Connector |
| Product Range | HR10 Series |
| Circular Connector Shell Style | Cable Mount Plug |
| No. of Contacts | 4Contacts |
| Circular Connector Contact Type | Solder Pin |
| Coupling Style | - |
| Connector Body Material | Brass Zinc Alloy Body |
| Connector Body Plating | - |
| Contact Material | Brass |
| Contact Plating | Gold |
| IP Rating | - |
| SVHC | Lead (04-Feb-2026) |
Product Overview
The HR10-7P-4P(73) from Hirose is a high performance, miniature circular plug connector with shell size 7. The connector has simple, yet highly reliable design for compact and high density applications. It is easy to operate and has single action push pull lock structure for quick and efficient locking and unlocking.
- IP67 degree of protection
- Rated current of 2A
- Rated voltage of 150VAC and 200VDC
- Solder wire termination
- Straight connector orientation
- Recommended wire size is 26AWG
- Shell material is metal
- Operating temperature range from -25°C to 85°C
- Copper alloy contacts with gold plating
- Minimum contact resistance of 10mohm
Applications
Industrial
Technical Specifications
| Connector Type | Miniature Circular Connector |
|---|---|
| Circular Connector Shell Style | Cable Mount Plug |
| Circular Connector Contact Type | Solder Pin |
| Connector Body Material | Brass Zinc Alloy Body |
| Contact Material | Brass |
| IP Rating | - |
| Product Range | HR10 Series |
|---|---|
| No. of Contacts | 4Contacts |
| Coupling Style | - |
| Connector Body Plating | - |
| Contact Plating | Gold |
| SVHC | Lead (04-Feb-2026) |
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .008 |
