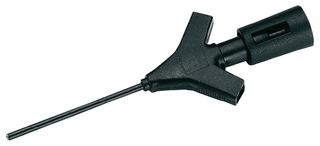

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | HIRSCHMANN TEST AND MEASUREMENT |
|---|---|
| Manufacturer Part No | 973972100Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 523410 |
| Product Range | MICRO-KLEPS Series |
| Your Part Number | |
| Technical Datasheet |
1,110 In Stock
Need more?
14 Delivery in 1-2 Business Days(SG stock)
1,096 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM52.790 |
| 5+ | RM51.210 |
| 10+ | RM49.690 |
Price for:Each
Minimum: 1
Multiple: 1
RM52.79
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | HIRSCHMANN TEST AND MEASUREMENT |
|---|---|
| Manufacturer Part No | 973972100Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 523410 |
| Product Range | MICRO-KLEPS Series |
| Technical Datasheet | |
| Connector Type | Test Probe |
| Centreline Spacing | - |
| Connector Tip Style | Grip Jaw |
| Current Rating | 2A |
| Overall Length | 53.8mm |
| Spring Force Initial | - |
| Spring Force Working Travel | - |
| Product Range | MICRO-KLEPS Series |
| SVHC | No SVHC (23-Jan-2024) |
Product Overview
Miniature clamp-type test probe with rotating grip jaws (SMD technology). The insulated shaft can be bent up to 35º. Suitable for very thin wires and densely packed contact points (1.27 mm IC spacing pitch). Connects with MKL... and MAL...
- 0.64 mm system
- Clamp-type test probe
- 30 VAC / 60 VDC rated voltage (1)
- O (3) measurement cat. acc. to IEC 61010
- 2 A rated current (1)
- PBT housing material
- (1) for normal environmental conditions -5°C to +40°C
- (3) without rated measurement category, for other circuits that are not directly connected to mains
- Temperature range: -25°C to +100°C
- Contact material: grip jaws: spring steel, pin: brass
- Contact surface material: grip jaws: tin, pin: gold
- Housing (basic material): UL 94 HB
Technical Specifications
| Connector Type | Test Probe |
|---|---|
| Connector Tip Style | Grip Jaw |
| Overall Length | 53.8mm |
| Spring Force Working Travel | - |
| SVHC | No SVHC (23-Jan-2024) |
| Centreline Spacing | - |
|---|---|
| Current Rating | 2A |
| Spring Force Initial | - |
| Product Range | MICRO-KLEPS Series |
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (23-Jan-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .002 |
