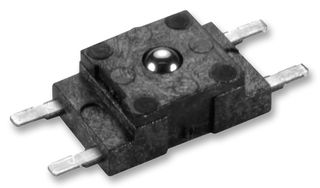

Force Sensor, Low Profile, FSS Series, 1.5 kg, 5 Vdc, -40 °C to 85 °C


Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Order Code:
Product Range
FS Series
Technical Datasheet:
FSS1500NSB   Datasheet
See all Technical Docs

Product Range Selector (FS Series)

See all from this product range

Product Overview

The FSS1500NSB from Honeywell is a low profile force sensor. The sensor provides precise reliable force sensing performance in a compact commercial grade package at a cost effective price. The sensor features a proven sensing technology that uses a specialized piezoresistive micromachined silicon sensing element. The low power, unamplified, uncompensated wheatstone bridge circuit design provides inherently stable mV outputs over the 1,500 gram force range. Force sensors operate on the principle that the resistance of silicon-implanted piezoresistors will increase when the resistors flex under any applied force. The sensor concentrates force from the application through the stainless steel ball directly to the silicon sensing element. The amount of resistance changes in proportion to the amount of force being applied. This change in circuit resistance results in a corresponding mV output level change.
  • Robust performance characteristics
  • Precision force sensing
  • Reliability rated at 20 million MCTF at 25 °C
  • Electrically ratiometric output
  • Extremely low deflection (30microns typical at Full Scale)
  • High ESD resistance 8 kV
  • Operating temperature range from -40°C to 85°C
  • True surface mount technology
  • Maximum peak reflow temperature of 260°C
  • Adaptable package design


Medical, Robotics, Consumer Electronics, Industrial


Do not use this product as safety or emergency stop devices or in any other application where failure of the product could result in personal injury.
