Product Information
ManufacturerHONEYWELL
Manufacturer Part NoV7-6C37E9-036
Order Code3439183
Product RangeV7
Technical Datasheet
Microswitch TypeMiniature
Microswitch ActuatorStraight Lever
Contact ConfigurationSPST-NC
Switch TerminalsQuick Connect
Contact Current Max15.1A
Contact Voltage DC Nom-
Product RangeV7
Contact Voltage AC Nom277V
Operating Force Max6ozf
Product Overview

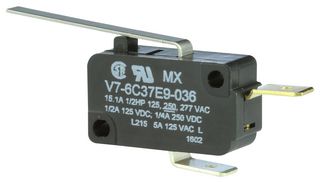

V7-6C37E9-036 is a V7 series miniature SPST-NC chassis mount switch designed for long-term reliability, up to 10 million cycles. The switch incorporates a snap-spring mechanism with more than 60 years of proven service and a high-strength thermoplastic housing for durability. Suitable for vending machines, household appliances, pressure switch assemblies, refrigeration and air-conditioning equipment's.
- Max 6oz to 14oz operating force
- 15A at 125 VAC electrical rating
- SPNC circuitry code
- 85°C, 2.9mm [0.11in]mtg. holes mounting/construction
- 0.250 x 0.032 quick connect spread termination style
- High strength thermoplastic housing, glass-filled PCT high-performance polyester
- Silver, gold plated, gold alloy contact material
- CSA, ENEC, UL approvals
- Up to 10 million cycles mechanical life (cycles)
Technical Specifications
Microswitch Type
Miniature
Contact Configuration
SPST-NC
Contact Current Max
15.1A
Product Range
V7
Operating Force Max
6ozf
Microswitch Actuator
Straight Lever
Switch Terminals
Quick Connect
Contact Voltage DC Nom
-
Contact Voltage AC Nom
277V
Technical Docs (3)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Tariff No:85365080
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.009
