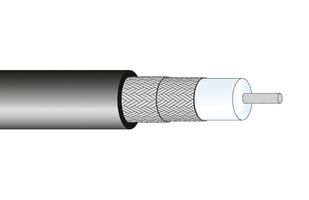

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | HUBER+SUHNER |
|---|---|
| Manufacturer Part No | RG_223_/UCopy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 3498630 |
| Product Range | RG Series |
| Also Known As | 22510072 |
| Your Part Number | |
| Technical Datasheet |
2 In Stock
Need more?
2 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM5,788.120 |
Price for:1 Reel: (328ft/100m)
Minimum: 1
Multiple: 1
RM5,788.12
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | HUBER+SUHNER |
|---|---|
| Manufacturer Part No | RG_223_/UCopy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 3498630 |
| Product Range | RG Series |
| Also Known As | 22510072 |
| Technical Datasheet | |
| Coaxial Cable Type | RG223, RG223/U |
| Conductor Area CSA | - |
| Reel Length (Imperial) | 328ft |
| Reel Length (Metric) | 100m |
| External Diameter | 5.4mm |
| Impedance | 50ohm |
| Jacket Colour | Black |
| Jacket Material | PVC II |
| No. of Max Strands x Strand Size | Solid |
| Product Range | RG Series |
| Wire Gauge | - |
| Conductor Material | Silver Plated Copper |
| SVHC | No SVHC (10-Jun-2022) |
Product Overview
RG_223_/U is a RG223 Mil standard RG cable.
- Excellent RF performance for precision applications
- Suitable for use in applications up to 6GHz
- 0.88mm - 0.1mm dia, copper, silver plated centre conductor
- 2.95mm dia, PE (polyethylene) dielectric
- 5.4mm +/- 0.1mm, RAL 9005 - bk, PVC II (low migration) jacket
- 50 ohm +/-1ohm impedance, ≤ 6GHz operating frequency
- ≤ 2.5kVrms operating voltage (at sea level), ≤ 5kVrms test voltage (50Hz/1min)
- 54mm repeated bending radius
- Insulation resistance is 100000000Mohm*m
- Operation temperature range from -25°C to 85°C
Technical Specifications
| Coaxial Cable Type | RG223, RG223/U |
|---|---|
| Reel Length (Imperial) | 328ft |
| External Diameter | 5.4mm |
| Jacket Colour | Black |
| No. of Max Strands x Strand Size | Solid |
| Wire Gauge | - |
| SVHC | No SVHC (10-Jun-2022) |
| Conductor Area CSA | - |
|---|---|
| Reel Length (Metric) | 100m |
| Impedance | 50ohm |
| Jacket Material | PVC II |
| Product Range | RG Series |
| Conductor Material | Silver Plated Copper |
Technical Docs (1)
Associated Products
8 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Switzerland Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85442000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (10-Jun-2022) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 5.5 |
