IDEAL POWER 15DYS850-120420W-K

AC/DC Power Supply, ITE, 1 Output, 50 W, 12 VDC, 4.2 A

IDEAL POWER 15DYS850-120420W-K
IDEAL POWER 15DYS850-120420W-K
IDEAL POWER 15DYS850-120420W-K
IDEAL POWER 15DYS850-120420W-K
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
15DYS850-120420W-K
Order Code:
3370081
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
ITE

:
1 Output

:
50W

:
12VDC

:
4.2A

:
-V

:
-A

:
Barrel Plug Center Positive 2.1mm x 5.5mm x 12mm

:
-V

:
-A

:
Fixed

:
90V AC to 264V AC

:
AU, EU, UK, US

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

Product Overview

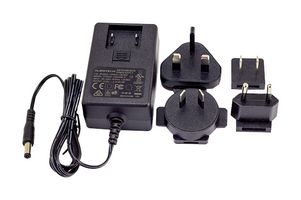

The 15DYS850-120420W-K from Ideal Power is an AC to DC interchangeable power supply. Certified to several international approvals to EN 60950-1 & EN 60065 standards. It is supplied with 4 interchangeable AC plugs (UK, Euro, US, Aust).
  • Input voltage range from 90VAC to 264VAC (full range), 47/63Hz frequency range
  • Input current (RMS) is 1.3A at 90VAC and 0.6A at 264VAC
  • 12VDC output voltage, ±5% voltage regulation at constant voltage mode
  • 4.2A output current, barrel plug centre positive 2.1mm x 5.5mm output connector
  • 50W maximum output power, size of 84.5mm x 52mm x 36mm
  • 100% ATE tested
  • NRCAN, DOE, ERP, GEMS, efficiency level VI energy saving
  • Ambient operating temperature range from 0°C to 45°C
  • High reliability, built-in OVP, OCP & SCP
  • 100% smart burn-in test for 4hours

Applications

Consumer Electronics, Industrial
