| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | CY7112Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 4410791 |
| Also Known As | SP005648935 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM89.680 |
| 5+ | RM87.890 |
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | CY7112Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 4410791 |
| Also Known As | SP005648935 |
| Technical Datasheet | |
| Kit Application Type | Interface & Communication |
| Application Sub Type | USB Microcontroller |
| Silicon Manufacturer | Infineon |
| Silicon Core Number | CYPM1211-40LQXI |
| Product Range | - |
| Kit Contents | PMG1-S2 Prototyping Board CYPM1211-40LQXI, Quick Start Guide |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

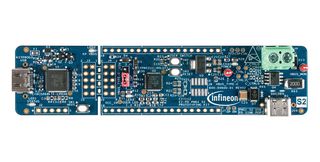

CY7112 is an EZ-PD™ PMG1-S2 prototyping kit a development platform to design products which can be powered from a high-voltage USB PD port, and also need a microcontroller to implement different features. This platform is compliant with the USB PD 3.0 protocol and can support up to 100W (20V, 5A) of power consumption. The CY7112 EZ-PD™ PMG1-S2 prototyping kit is based on the EZ-PD™ PMG1-S2 microcontroller (CYPM1211-40LQXI). This is an ARM Cortex-M0 based controller with 128KB flash and 8KB SRAM. It implements a complete Type-C USB-PD transceiver and supports 20 GPIOs of which, some of them can be re-purposed to support SCB (serial communication block) functions such as I2C, UART & SPI.
- Single phase configuration
- DC input type
- Output current range from 0.5A to 5A
- Output voltage range from 3.3V to 21V
- Supply voltage range from 3.3V to 24V
- USB topology
Contents
CY7112 EZ-PD™ PMG1-S2 prototyping board, Quick start guide.
Technical Specifications
| Kit Application Type | Interface & Communication |
|---|---|
| Silicon Manufacturer | Infineon |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
| Application Sub Type | USB Microcontroller |
|---|---|
| Silicon Core Number | CYPM1211-40LQXI |
| Kit Contents | PMG1-S2 Prototyping Board CYPM1211-40LQXI, Quick Start Guide |
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | 3A991.a.3 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .001361 |
