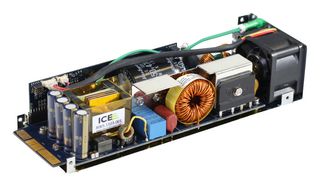

Evaluation Board, CoolMOS P7 600V MOSFETs, PSU, Server Applications, 800W


Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Order Code:
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Also Known As:
SP001690920, EVAL_800W_PSU_3P_P7
Supply Frame Models Link
See all Technical Docs

Product Overview

800W evaluation board is intended to be a cost optimized form, fit and function testplatform for server applications to show operation of the 600V CoolMOS™ P7 SJ MOSFET, CoolSiC™ Schottky diode 650V G5, OptiMOS™ 40V low voltage power MOSFET, 1EDI and 2EDN EiceDRIVER™, quasi-resonant fly back controller with integrated MOSFET CoolSET™ and XMC1400/4200 microcontrollers. The evaluation board is designed around the Infineon 600V CoolMOS™ P7 4pin device and OptiMOS™ 40V technology with integrated schottky-like diode to show switching performance and power density design by using digital control. Target application is server SMPS.
  • Low cost 4 layer
  • 90 to 265VAC input voltage
  • Greater than 95% efficiency at 230VAC
  • High efficiency at 100% load
  • Exceeding platinum efficiency standard
