EVALBDPSDRIVERTOBO1
Evaluation Kit, 2EDF7175F, Battery Disconnect Switch, Power Management - Battery
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | EVALBDPSDRIVERTOBO1Copy |
| Order Code | 4410829 |
| Also Known As | SP005593430 |
| Your Part Number | |
| Technical Datasheet |
register your interest here
| Quantity | Price |
|---|---|
| 1+ | RM541.500 |
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | EVALBDPSDRIVERTOBO1Copy |
| Order Code | 4410829 |
| Also Known As | SP005593430 |
| Technical Datasheet | |
| Kit Application Type | Power Management - Battery |
| Application Sub Type | Battery Disconnect Switch |
| Silicon Core Number | 2EDF7175F |
| Silicon Manufacturer | Infineon |
| Kit Contents | Evaluation Board 2EDF7175F |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

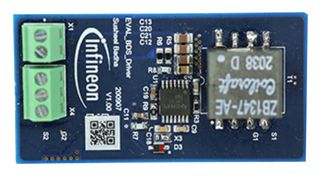

EVALBDPSDRIVERTOBO1 is a bidirectional high and low-side back-to-back MOSFET driver featuring EiceDRIVER™ 2EDF7175F evaluation board. This evaluation-board featuring EiceDRIVER™ 2EDF7175F, uses a modular approach to drive the bidirectional MOSFET switch boards (EVAL_BDPS_DD_TOLL/G) and can be used to drive multiple MOSFET boards in parallel. The board enables fast and easy prototyping of battery protection for batteries packs with nominal voltages up to 48V. Applications with lithium-ion batteries use battery management systems (BMS’s) to monitor the battery state and ensure safe operation. The BMS is typically equipped with an electronic switch that disconnects the battery from the charger or loads under critical conditions. Suitable for LEVs, AGVs (service robots), power tools, energy storage and backup systems.
- Stackable to allow for paralleling of multiple MOSFET boards
- Onboard test points
- Ease of use
- Fast prototyping
Technical Specifications
| Kit Application Type | Power Management - Battery |
|---|---|
| Silicon Core Number | 2EDF7175F |
| Kit Contents | Evaluation Board 2EDF7175F |
| SVHC | No SVHC (04-Feb-2026) |
| Application Sub Type | Battery Disconnect Switch |
|---|---|
| Silicon Manufacturer | Infineon |
| Product Range | - |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Hong Kong Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Not applicable |
| RoHS Phthalates Compliant: | Not applicable |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .18 |
