EVALISSI20R02HTSTOBO1

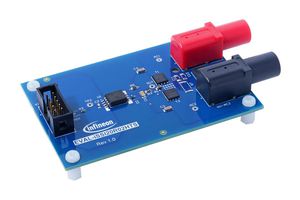

Evaluation Board, iSSI20R02H, Coreless Transformer Advanced Solid State Isolator
Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | EVALISSI20R02HTSTOBO1Copy |
| Manufacturer Standard Lead Time | 52 weeks |
| Order Code | 4445623 |
| Your Part Number | |
| Technical Datasheet |
10 In Stock
Need more?
10 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM802.970 |
Price for:Each
Minimum: 1
Multiple: 1
RM802.97
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | EVALISSI20R02HTSTOBO1Copy |
| Manufacturer Standard Lead Time | 52 weeks |
| Order Code | 4445623 |
| Technical Datasheet | |
| Kit Application Type | Isolator |
| Application Sub Type | Coreless Transformer Advanced Solid State Isolator |
| Silicon Manufacturer | Infineon |
| Silicon Core Number | iSSI20R02H |
| Product Range | - |
| Kit Contents | Evaluation Board iSSI20R02H |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
EVALISSI20R02HTSTOBO1 is an Infineon's coreless-transformer advanced solid-state isolator evaluation board for iSSI20R02HTS. EVAL-iSSI20R02HTS is intended for evaluating the product features of Infineon’s SSI solid-state isolator (iSSI20R02H) in an application circuit. Evaluation board contains the iSSI20R02H and two OptiMOS™ ISC035N10NM5LF MOSFETs in an AC switch configuration. Typical applications include Battery management systems (BMS, industrial automation, power conversion, power transmission and distribution, smart buildings.
- iSSI20R02H + 2 OptiMOS™ ISC035N10NM5LF
- AC switch configuration
- Over-temperature protection with PTC
- Standard turn-on
- Fast turn-off after over temperature
- Dynamic miller clamping
- Fast iSSI evaluation and design
Technical Specifications
| Kit Application Type | Isolator |
|---|---|
| Silicon Manufacturer | Infineon |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
| Application Sub Type | Coreless Transformer Advanced Solid State Isolator |
|---|---|
| Silicon Core Number | iSSI20R02H |
| Kit Contents | Evaluation Board iSSI20R02H |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .002268 |
