| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | EVALM5IMZ120RSICTOBO1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3625427 |
| Also Known As | SP005420476 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM3,373.440 |
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | EVALM5IMZ120RSICTOBO1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3625427 |
| Also Known As | SP005420476 |
| Technical Datasheet | |
| Application Sub Type | Servo Motor |
| Silicon Manufacturer | Infineon |
| Kit Application Type | Motor Driver |
| Silicon Core Number | M5IMZ120RSIC |
| Kit Contents | M5IMZ120RSIC MOSFET Evaluation Board |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

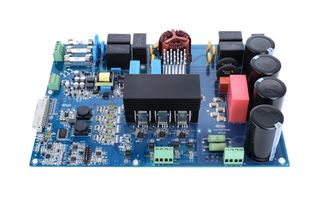

EVALM5IMZ120RSICTOBO1 is a motor drives inverter board with CoolSiC™ MOSFET in TO247 package. This evaluation board is a part of the iMOTION™ Modular Application Design Kit for motor drives. This board can easily be interfaced via the iMOTION™ MADK-M5 32-pin interface connector to control board such as the XMC DriveCard 4400 or XMC DriveCard 1300. It provides a demonstration program provided with a XMC Drive Card 4400 platform, controlling the main board, and demonstrates Infineon’s CoolSiC™ MOSFETs in motor drives. This evaluation board is designed to be an easy-to-use power stage based on Infineon's discrete SiC power MOSFETs. The board is equipped with all assembly groups for sensorless field oriented control (FOC). It provides a three-phase AC-connector, EMI filter, rectifier and a 3-phase output for connecting the motor. The power stage also contains isolated current, voltage and temperature sensing circuits.
- Input voltage range from 340 to 480V AC, peak 11kW motor power output
- On-board EMI filter and thermistor output
- Basic insulation between power and signal part
- Isolated current sensing w/ sigma delta ADC & isolated sensing of DC-link voltage by sigma delta-ADC
- Overload and short-circuit hardware protection, overtemperature hardware protection
- All six switches turn off during protection
- Rugged gate driver technology with stability against transient and negative voltage
- Auxiliary power supply with 5V
- Measurement test-points compatible with standard oscilloscope probes
- Dimension of PCB are 259mm x 204mm; PCB has four layers of 35μm copper each
Technical Specifications
| Application Sub Type | Servo Motor |
|---|---|
| Kit Application Type | Motor Driver |
| Kit Contents | M5IMZ120RSIC MOSFET Evaluation Board |
| SVHC | No SVHC (04-Feb-2026) |
| Silicon Manufacturer | Infineon |
|---|---|
| Silicon Core Number | M5IMZ120RSIC |
| Product Range | - |
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .5 |
