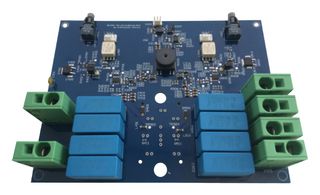

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | EVALPSE1BF12SICTOBO1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3500939 |
| Also Known As | SP001798382 |
| Your Part Number | |
| Technical Datasheet |
1 In Stock
Need more?
1 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM1,751.870 |
Price for:Each
Minimum: 1
Multiple: 1
RM1,751.87
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | EVALPSE1BF12SICTOBO1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3500939 |
| Also Known As | SP001798382 |
| Technical Datasheet | |
| Silicon Manufacturer | Infineon |
| Silicon Core Number | FF11MR12W1M1_B11, FF23MR12W1M1_B11 |
| Kit Application Type | Power Management |
| Application Sub Type | SiC MOSFET Module |
| Kit Contents | Evaluation Board FF11MR12W1M1_B11/FF23MR12W1M1_B11 |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
Evaluation board for CoolSiC™ Easy1B half-bridge modules. This board has the purpose to enable the evaluation of the FF11MR12W1M1_B11 and FF23MR12W1M1_B11 CoolSiC™ MOSFET modules with EiceDRIVER™ 1200V isolated gate driver 1EDI60I12AF. The evaluation board allows the performance of double-pulse measurements as well as functional tests as DC/DC converter. Therefore the board is designed as bidirectional buck-boost converter. Target applications include charger, solar energy systems and UPS.
- Double pulse characterization
- Functional testing of the buck-boost operation using electrical loads at the input or output stage
- Maximum supply voltage of 900V
Technical Specifications
| Silicon Manufacturer | Infineon |
|---|---|
| Kit Application Type | Power Management |
| Kit Contents | Evaluation Board FF11MR12W1M1_B11/FF23MR12W1M1_B11 |
| SVHC | No SVHC (04-Feb-2026) |
| Silicon Core Number | FF11MR12W1M1_B11, FF23MR12W1M1_B11 |
|---|---|
| Application Sub Type | SiC MOSFET Module |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .25 |
