F46MR20W3M1HB11BPSA1
Silicon Carbide MOSFET, N Channel, 135 A, 2 kV, 8100 µohm, Module

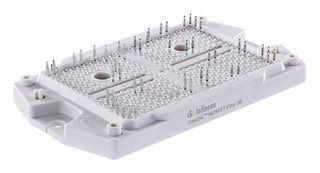

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | F46MR20W3M1HB11BPSA1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 4680825 |
| Product Range | EasyPACK Series |
| Also Known As | F4-6MR20W3M1H_B11, SP005975717 |
| Your Part Number | |
| Technical Datasheet |
18 In Stock
Need more?
18 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM2,199.880 |
| 5+ | RM2,155.890 |
Price for:Each
Minimum: 1
Multiple: 1
RM2,199.88
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | F46MR20W3M1HB11BPSA1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 4680825 |
| Product Range | EasyPACK Series |
| Also Known As | F4-6MR20W3M1H_B11, SP005975717 |
| Technical Datasheet | |
| MOSFET Module Configuration | - |
| Channel Type | N Channel |
| Continuous Drain Current Id | 135A |
| Drain Source Voltage Vds | 2kV |
| Drain Source On State Resistance | 8100µohm |
| Transistor Case Style | Module |
| No. of Pins | 50Pins |
| Rds(on) Test Voltage | 18V |
| Gate Source Threshold Voltage Max | 5.15V |
| Power Dissipation | - |
| Operating Temperature Max | 175°C |
| Product Range | EasyPACK Series |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
F46MR20W3M1HB11BPSA1 is an EasyPACK™ module with CoolSiC™ Trench MOSFET and PressFIT / NTC. Potential applications include EV charging, energy storage systems (ESS), solar applications, and DC/DC converters.
- Qualified for industrial applications according to the relevant tests of IEC 60747, 60749 and 60068
- Overload operation up to 175°C
- Integrated NTC temperature sensor, PressFIT contact technology
- Drain-source voltage is 2000V at Tvj = 25°C
- Continuous DC drain current is 135A at Tvj = 175°C, VGS = 18V, TH = 65°C
- Repetitive peak drain current is 320A ( verified by design, tp limited by Tvjmax)
- Drain-source on-resistance is 5.1mohm typ at VGS = 18V, Tvj = 25°C, ID = 160A
- Total gate charge is 0.78µC typ at VDD = 1200V, VGS = -3V, Tvj = 25°C
- Drain-source leakage current is 0.04µA typ at VDS = 2000V, VGS = -3V, Tvj = 25°C
- Storage temperature range from -40 to 125°C
Technical Specifications
| MOSFET Module Configuration | - |
|---|---|
| Continuous Drain Current Id | 135A |
| Drain Source On State Resistance | 8100µohm |
| No. of Pins | 50Pins |
| Gate Source Threshold Voltage Max | 5.15V |
| Operating Temperature Max | 175°C |
| SVHC | No SVHC (04-Feb-2026) |
| Channel Type | N Channel |
|---|---|
| Drain Source Voltage Vds | 2kV |
| Transistor Case Style | Module |
| Rds(on) Test Voltage | 18V |
| Power Dissipation | - |
| Product Range | EasyPACK Series |
