ILS-XP12-S300-0280-SC201-W2.

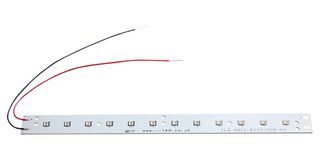

UV Emitter Module, 12 Chip, 320 to 320 nm, 27.3W, 130° (+/- 65°), Rectangular PCB, M3 Heatsink Mount
Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | INTELLIGENT LED SOLUTIONS |
|---|---|
| Manufacturer Part No | ILS-XP12-S300-0280-SC201-W2.Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 3594548 |
| Product Range | UV N3535 12 VIOLET Strip Series |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 7 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM3,173.700 |
Price for:Each
Minimum: 1
Multiple: 1
RM3,173.70
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | INTELLIGENT LED SOLUTIONS |
|---|---|
| Manufacturer Part No | ILS-XP12-S300-0280-SC201-W2.Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 3594548 |
| Product Range | UV N3535 12 VIOLET Strip Series |
| Technical Datasheet | |
| UV Emitter Module Type | 12 Chip UV Module |
| Product Range | UV N3535 12 VIOLET Strip Series |
| Peak Wavelength | 300 to 320nm |
| Typical Wattage | 27.3W |
| Forward Voltage Range | 20V to 30V |
| Minimum Radiometric Power | 720mW |
| Radiance Angle | ± 65° (130°) |
| Forward Current per Chip | 350mA |
| UV Emitter Module Mounting | Strip PCB, M3 Holes - Heatsink Mount |
| UV Emitter Module Leads | 200mm Red & Black |
| Operating Temperature Max | 60°C |
| SVHC | No SVHC (04-Feb-2026) |
Technical Specifications
| UV Emitter Module Type | 12 Chip UV Module |
|---|---|
| Peak Wavelength | 300 to 320nm |
| Forward Voltage Range | 20V to 30V |
| Radiance Angle | ± 65° (130°) |
| UV Emitter Module Mounting | Strip PCB, M3 Holes - Heatsink Mount |
| Operating Temperature Max | 60°C |
| Product Range | UV N3535 12 VIOLET Strip Series |
|---|---|
| Typical Wattage | 27.3W |
| Minimum Radiometric Power | 720mW |
| Forward Current per Chip | 350mA |
| UV Emitter Module Leads | 200mm Red & Black |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Associated Products
4 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85415000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .013 |
