LFXTAL016788
Crystal, HC49/4HSMX Series, 6 MHz, 30 ppm, 50 ppm, 30 pF

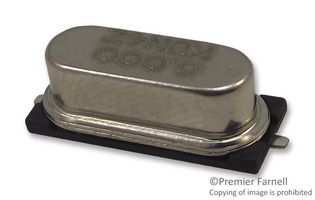

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | IQD FREQUENCY PRODUCTS |
|---|---|
| Manufacturer Part No | LFXTAL016788Copy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | Re-Reel9713310RL Cut Tape9713310 |
| Product Range | HC49/4HSMX Series |
| Also Known As | LFXTAL016788Reel |
| Your Part Number | |
| Technical Datasheet |
1,874 In Stock
Need more?
313 Delivery in 1-2 Business Days(SG stock)
1,561 Delivery in 3-4 Business Days(UK stock)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 5 | RM1.710 | RM8.55 |
| Total Price | RM8.55 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 5+ | RM1.710 |
| 10+ | RM1.480 |
| 100+ | RM1.300 |
| 500+ | RM1.200 |
| 1000+ | RM1.180 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | IQD FREQUENCY PRODUCTS |
|---|---|
| Manufacturer Part No | LFXTAL016788Copy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | Re-Reel9713310RL Cut Tape9713310 |
| Product Range | HC49/4HSMX Series |
| Also Known As | LFXTAL016788Reel |
| Technical Datasheet | |
| Product Range | HC49/4HSMX Series |
| Frequency Nom | 6MHz |
| Crystal Frequency | 6MHz |
| Frequency Tolerance + / - | 30ppm |
| Frequency Stability + / - | 50ppm |
| Load Capacitance | 30pF |
| Crystal Case / Package | SMD, 11.4mm x 4.9mm |
| No. of Pins | 2Pins |
| Crystal Mounting | SMD |
| Operating Temperature Min | -10°C |
| Operating Temperature Max | 60°C |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
- Industry standard SMD crystal
- Resistance welded, hermetically sealed in an inert atmosphere, glass to metal seals on leads
Technical Specifications
| Product Range | HC49/4HSMX Series |
|---|---|
| Crystal Frequency | 6MHz |
| Frequency Stability + / - | 50ppm |
| Crystal Case / Package | SMD, 11.4mm x 4.9mm |
| Crystal Mounting | SMD |
| Operating Temperature Max | 60°C |
| Frequency Nom | 6MHz |
|---|---|
| Frequency Tolerance + / - | 30ppm |
| Load Capacitance | 30pF |
| No. of Pins | 2Pins |
| Operating Temperature Min | -10°C |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Alternatives for LFXTAL016788
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85416000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000557 |
