030-2415-001
Rectangular Power Contact, ITT Cannon DL, Gold Plated Contacts, Copper Alloy, Pin, Socket, Crimp

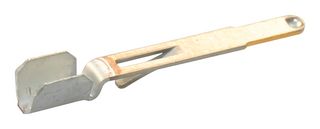

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | ITT CANNON |
|---|---|
| Manufacturer Part No | 030-2415-001Copy |
| Manufacturer Standard Lead Time | 143 weeks |
| Order Code | 2677950 |
| Product Range | ITT Cannon DL |
| Also Known As | 030-2415-001 |
| Your Part Number | |
| Technical Datasheet |
21,744 In Stock
15,000 more incoming. You can reserve stock now
21,744 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 10+ | RM3.650 |
| 100+ | RM3.130 |
| 250+ | RM2.950 |
| 500+ | RM2.820 |
| 1000+ | RM2.690 |
| 2500+ | RM2.530 |
Price for:Each
Minimum: 10
Multiple: 10
RM36.50
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | ITT CANNON |
|---|---|
| Manufacturer Part No | 030-2415-001Copy |
| Manufacturer Standard Lead Time | 143 weeks |
| Order Code | 2677950 |
| Product Range | ITT Cannon DL |
| Also Known As | 030-2415-001 |
| Technical Datasheet | |
| Product Range | ITT Cannon DL |
| Contact Plating | Gold Plated Contacts |
| Contact Material | Copper Alloy |
| Contact Gender | Pin, Socket |
| Contact Termination Type | Crimp |
| Wire Size AWG Min | 20AWG |
| Wire Size AWG Max | 18AWG |
| SVHC | No SVHC (20-Jun-2016) |
Product Overview
The 030-2415-001 is a Bump Contact made of copper alloy with 20-inch gold over nickel in mated area, gold flash on balance (terminal end) finish. The DL series crimp contact accepts 20 to 18AWG wire. It is suitable for use with the ZIF connectors.
- 5A Maximum rated current
- 1200VAC RMS Dielectric withstanding voltage
- 15mΩ Maximum contact resistance
- 35.585N Minimum contact retention
Applications
Industrial
Technical Specifications
| Product Range | ITT Cannon DL |
|---|---|
| Contact Material | Copper Alloy |
| Contact Termination Type | Crimp |
| Wire Size AWG Max | 18AWG |
| Contact Plating | Gold Plated Contacts |
|---|---|
| Contact Gender | Pin, Socket |
| Wire Size AWG Min | 20AWG |
| SVHC | No SVHC (20-Jun-2016) |
Technical Docs (1)
Alternatives for 030-2415-001
3 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | No |
| RoHS Phthalates Compliant: | No |
| SVHC: | No SVHC (20-Jun-2016) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000175 |
