02SUR02SUR32W150

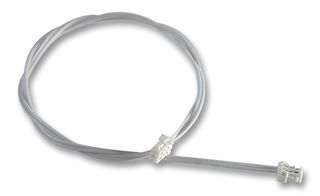

The 02SUR-02SUR-32W150 is a 150mm Ribbon Cable with 2-postion IDC receptacle at both ends. 0.8mm pitch. The 3-point insulation grip features and the strain relief ensures a firm grip on terminated wires and protection of the insulation displacement connection from possible damage. Applicable wire is of #32AWG with only 0.38mm (0.015-inch) OD, with this super fine wire, routing of wires is easy. The header is fully shrouded, but remains thin. The insulation displacement section connected to each wire consists of two tin-plated slots (twin U-slots), which ensures reliable connection.

• 3-point Grip construction
• Twin U-slot insulation displacement section
• 32AWG Wire size
• 100MΩ Insulation resistance
• UL94V-0 Flammability rating

Applications

Industrial

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
