2000-SCAN

Test Accessory, Scanner Card, Keithley 2000, 2001, 2002, 2010 Digital Multimeters

KEITHLEY 2000-SCAN
×
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
KEITHLEY KEITHLEY
Manufacturer Part No:
2000-SCAN
Order Code:
2772536
Technical Datasheet:
2000-SCAN   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Scanner Card

:
Keithley 2000, 2001, 2002, 2010 Digital Multimeters

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (2)

CAD Downloads

×

Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

Product Overview

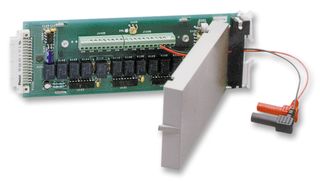

The 2000-SCAN from Keithley is a 10 channel, general purpose scanner card. This scanner card designed to be installed in the model 2000 multimeter, model 2001 multimeter and model 2002 multimeter.
  • Ten channels of 2 pole relay input
  • Channels configurable for 4-pole operation
  • Multiplex one of ten 2 pole or one of five 4 pole channels into a model 2000/2001/2002 multimeter
  • Dimension is 21mm high x 72mm wide x 221mm and weight is 0.4g
  • Maximum voltage between any two terminals is 200V peak
  • Common mode voltage is 350V peak between any terminal and earth
  • Actuation time is 2.5ms maximum on/off
  • 110VDC, 1A switched, 30VA maximum (resistive load) DC signal
  • 125VAC rms or 175VAC peak, 100KHz maximum, 1A switched, 62.5VA maximum (resistive load) AC signal

Contents

Model 2000-SCAN scanner card, Instruction manual, CA-109 test lead set for output connections (two red, two black).
