2380-500-30

DC Electronic Load, 2380, 750 W, Programmable, 3.6 V, 500 V, 30 A

KEITHLEY 2380-500-30
×
×

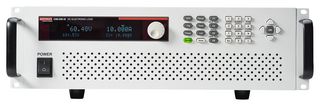

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
KEITHLEY KEITHLEY
Manufacturer Part No:
2380-500-30
Order Code:
2520639
Product Range
2380
Technical Datasheet:
2380-500-30   Datasheet
See all Technical Docs

Product Range Selector (2380)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
2380

:
750W

:
Programmable

:
3.6V

:
500V

:
30A

:
3 Years

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (2)

CAD Downloads

×

Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

Product Overview

The 2380 series Programmable DC Electronic Load can sink a wide range of voltages and currents. The 200W model 2380-500-15 can accept up to 500V or 15A. The 250W model 2380-120-60 can accept up to 120V or 60A. The 750W model 2380- 500 30 can accept up to 500V or 30A. These single-output, stand-alone electronic loads are self-contained. These DC electronic loads can operate in constant current (CC), constant voltage (CV), constant resistance (CR) or constant power (CP) mode. They can also be configured to provide a dynamically changing load to the DC source with load switching times as fast as 25kHz. Versatile internal, external and remote triggering options allow synchronizing the dynamic load behaviour with other events. The protection functions built into series 2380 DC electronic loads ensure the reliability and safety of all tests. These functions include Overvoltage (OVP), overcurrent (OCP) overpower (OPP) and overtemperature (OTP) and LRV/RRV protection.
  • LED simulated load test mode
  • Read back voltage and current resolution down to 0.1mV/0.01mA
  • Dynamic mode with cycle rate up to 25kHz
  • Voltage rise and fall time measurement
  • Current monitor function
  • Battery test mode
  • List mode
  • Built-in GPIB, USB and RS-232 interfaces
  • 200W, 250W and 750W Models
  • Supports up to 500V or 60A
  • Applications LED lighting drivers and high power component testing

Applications

Test & Measurement

Contents

Programmable DC electronic Load, Quick start guide, Documentation CD, Power cord.

Footnotes
