KEMET C0603Y222K5RACTU

SMD Multilayer Ceramic Capacitor, FF-CAP, 2200 pF, 50 V, 0603 [1608 Metric], ± 10%, X7R

KEMET C0603Y222K5RACTU
×

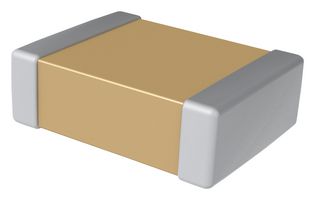

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
KEMET KEMET
Manufacturer Part No:
C0603Y222K5RACTU
Order Code:
1520289
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Also Known As:
C0603Y222K5RAC7867
Technical Datasheet:
C0603Y222K5RACTU   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
2200pF

:
50V

:
1.6mm

:
0.85mm

:
-55°C

:
125°C

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (3)

Product Overview

The Y series surface mount capacitor with an X7R dielectric is a floating electrode with flexible termination capacitor (FF-CAP). It combines two existing KEMET technologies - floating electrode and flexible termination. The floating electrode component utilizes a cascading internal electrode design configured to form multiple capacitors in series within a single monolithic structure. This unique configuration results in enhanced voltage and ESD performance over standard capacitor designs while allowing for a fail-open condition if mechanically damaged (cracked). The flexible termination component utilizes a conductive silver epoxy between the base metal and nickel barrier layers of KEMET's standard termination system in order to establish pliability while maintaining terminal strength, solderability and electrical performance.
  • up to 5 mm flex-bend capability
  • Floating electrode/ Fail open design
  • Low to mid capacitance flex mitigation
  • Non-polar device, minimizing installation concerns
  • 100% Pure matte tin-plated termination finish allowing for excellent solderability
  • EIA 0603, 0805, 1206, 1210 and 1812 case sizes available
  • DC voltage ratings of 6.3, 10, 16, 25, 50, 100, 200 and 250V
  • Capacitance offerings ranging from 180pF to 0.22μF

Also Known As

C0603Y222K5RAC7867
Packaging type Cut Tape

Additional packaging options available
Re-reel (minimum 100/reel):1520289RL Check stock

12,531 In stock Need more?

12,531 UK stock available for 3-4 business days delivery

Due to market conditions delivery times are for general guidance only and may be subject to change at short notice

RM1.30

Pricing is unavailable. Please contact customer services.

Price for:
Each (Supplied on Cut Tape)
Multiple: 10 Minimum: 10
