| Manufacturer | KEYSIGHT TECHNOLOGIES |
|---|---|
| Manufacturer Part No | 34405ACopy |
| Order Code | 1209896 |
| Product Range | Truevolt Series |
| Your Part Number | |
| Technical Datasheet |
Product Information
| Manufacturer | KEYSIGHT TECHNOLOGIES |
|---|---|
| Manufacturer Part No | 34405ACopy |
| Order Code | 1209896 |
| Product Range | Truevolt Series |
| Technical Datasheet | |
| No. of Digits | 5.5 |
| DMM Connectivity | USB |
| Current Measure AC Max | 10A |
| Voltage Measure AC Max | 750V |
| Resistance Measure Max | 0.1Gohm |
| Product Range | Truevolt Series |
| Current Measure DC Max | 10A |
| Voltage Measure DC Max | 1kV |
| Manufacturer Warranty | 3 Years |
| DMM Functions | Current, Voltage, Capacitance, Frequency, Resistance, Temperature |
| Plug Type | EU, UK |
| SVHC | To Be Advised |
Product Overview

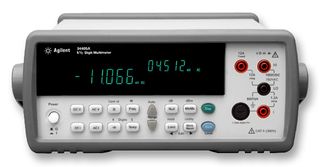

The Keysight 34405A 5-1/2 digit benchtop digital multimeter comes with a broad range of measurement functions, including temperature and capacitance measurements. The 34405A features simultaneous reading of DC and AC measurements with its dual display and can take up to 19 readings/sec at 4 1/2 digit resolution through the standard USB interface. The SCPI language compatibility makes it easy to migrate from your existing test setup.
- 120000 counts resolution
- 16 measurement functions including temperature and capacitance
- USB 2.0 interface (TMC-488.2 Compliance)
- SCPI language compatible
- Comes with DMM Intuilink data logging software
- Multi-function flexibility
- Laboratory accuracy at production-line speeds
- True RMS AC Volts and Current
- RS-232 and GPIB Standard
- Store up to 512 Readings
Applications
Industrial, Maintenance & Repair, Test & Measurement
Contents
Test lead kit, test report, power cord, USB interface cable, quick start guide, user's and service guide, product reference CD-ROM and Keysight IO library suite CD-ROM.
Technical Specifications
| No. of Digits | 5.5 |
|---|---|
| Current Measure AC Max | 10A |
| Resistance Measure Max | 0.1Gohm |
| Current Measure DC Max | 10A |
| Manufacturer Warranty | 3 Years |
| Plug Type | EU, UK |
| DMM Connectivity | USB |
|---|---|
| Voltage Measure AC Max | 750V |
| Product Range | Truevolt Series |
| Voltage Measure DC Max | 1kV |
| DMM Functions | Current, Voltage, Capacitance, Frequency, Resistance, Temperature |
| SVHC | To Be Advised |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90303100 |
| US ECCN: | 3A992 |
| EU ECCN: | NLR |
| RoHS Compliant: | Not applicable |
| RoHS Phthalates Compliant: | Not applicable |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 3.75 |
