| Manufacturer | KEYSIGHT TECHNOLOGIES |
|---|---|
| Manufacturer Part No | 34923ACopy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 3262677 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM8,818.110 |
Product Information
| Manufacturer | KEYSIGHT TECHNOLOGIES |
|---|---|
| Manufacturer Part No | 34923ACopy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 3262677 |
| Technical Datasheet | |
| Accessory Type | Multiplexer |
| For Use With | Keysight 34980A Mainframe |
| Product Range | - |
| SVHC | To Be Advised |
Product Overview

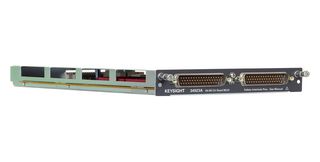

34923A is a 40/80 channel reed multiplexer module for 34980A multifunction switch/measure unit. This is a high speed-multiplexer for general-purpose scanning. It uses reed relays to achieve scan rates up to 500 channels per second. Use this module for high-throughput automated test applications as well as high-speed data logging and monitoring tasks. Current measurements can be accomplished with user supplied shunts. Standard 50-pin D-sub connectors allow for use with standard cables, terminal blocks, or mass interconnect solutions. 2- and 4-wire channels may be mixed on the same module, or configure as an 80 1-wire multiplexer.
- 40 2-wire channels or 80 1-wire channels
- Mixed 2- or 4-wire configurations
- High-speed reed relays, with relay counter
- 500ch/s scanning and +/-150V peak, 0.5A switch, 1.5A carry current
- Bandwidths up to 45MHz
- <lt/> 50μV thermal offset
Technical Specifications
| Accessory Type | Multiplexer |
|---|---|
| Product Range | - |
| For Use With | Keysight 34980A Mainframe |
|---|---|
| SVHC | To Be Advised |
Associated Products
8 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Malaysia Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85371098 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 1.38 |
