| Manufacturer | L-COM |
|---|---|
| Manufacturer Part No | TFCLS6001Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 2291999 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | RM7,808.810 |
Product Information
| Manufacturer | L-COM |
|---|---|
| Manufacturer Part No | TFCLS6001Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 2291999 |
| Technical Datasheet | |
| Cable Shielding | Screened |
| LAN Category | Cat6 |
| Wire Gauge | 26AWG |
| Conductor Area CSA | - |
| Reel Length (Imperial) | 1000ft |
| Reel Length (Metric) | 304.8m |
| No. of Pairs | 4 Pair |
| Jacket Colour | Grey |
| No. of Max Strands x Strand Size | 4 x 26AWG |
| Voltage Rating | - |
| Jacket Material | Polyolefin, Zero Halogen |
| Conductor Material | Tinned Copper |
| External Diameter | 6.096mm |
| Product Range | - |
| SVHC | No SVHC (17-Dec-2014) |
Product Overview

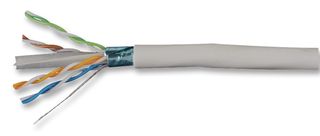

The TFCLS6001 is a 4-pair Shielded Cable with 26AWG stranded tinned copper conductors and polyolefin insulation. This category 6 bulk cable comes with aluminum/polyester tape shield (100% coverage), 26AWG tinned copper drain wire and flame-retardant zero halogen polyolefin light gray (RAL# 7035) jacket. For protection against EMI/RFI interference L-com's high-performance Category 6 shielded LSZH bulk cable is the perfect choice. Designed for environments where PVC's combustive toxicity is restricted, L-com's shielded low smoke zero halogen (LSZH) Ethernet cable provides the ideal alternative. Featuring aluminized polyester shielded cable with drain wire, this cable is designed to protect from EMI/RFI while maintaining high performance data transmission characteristics. Ensure the protection of your investment by utilizing this L-com exclusive LSZH cable. The 26AWG stranded conductors for flexibility, low toxicity and non-corrosive jacket to protect equipment and people.
- CPR: Not Yet Qualified
- 14Ω/100m Conductor resistance
- 13.5pF/ft at 1MHz Maximum mutual capacitance
- 75°C Maximum operating temperature
Applications
Communications & Networking
Technical Specifications
| Cable Shielding | Screened |
|---|---|
| Wire Gauge | 26AWG |
| Reel Length (Imperial) | 1000ft |
| No. of Pairs | 4 Pair |
| No. of Max Strands x Strand Size | 4 x 26AWG |
| Jacket Material | Polyolefin, Zero Halogen |
| External Diameter | 6.096mm |
| SVHC | No SVHC (17-Dec-2014) |
| LAN Category | Cat6 |
|---|---|
| Conductor Area CSA | - |
| Reel Length (Metric) | 304.8m |
| Jacket Colour | Grey |
| Voltage Rating | - |
| Conductor Material | Tinned Copper |
| Product Range | - |
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85444995 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (17-Dec-2014) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 14.15208 |
