| Manufacturer | LAIRD |
|---|---|
| Manufacturer Part No | BMI-S-205-CCopy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 2497722 |
| Your Part Number | |
| Technical Datasheet |
14,883 In Stock
Need more?
812 Delivery in 1-2 Business Days(SG stock)
14,071 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM2.970 |
| 50+ | RM2.400 |
| 100+ | RM2.200 |
| 250+ | RM2.080 |
| 500+ | RM1.990 |
| 1250+ | RM1.900 |
Price for:Each
Minimum: 1
Multiple: 1
RM2.97
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | LAIRD |
|---|---|
| Manufacturer Part No | BMI-S-205-CCopy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 2497722 |
| Technical Datasheet | |
| Shielding Type | EMI Shielding |
| Gasket Material | Cold Rolled Steel |
| Product Length | 38.1mm |
| Product Width | 25.4mm |
| Product Depth | 6mm |
| Product Range | - |
| SVHC | No SVHC (07-Nov-2024) |
Product Overview

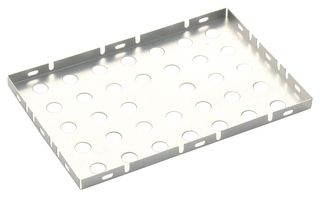

BMI-S-205-C is a two-piece board level shield cover.
- CRS material
- Snap fit mounting type
- Matte tin plating
- 1.25 to 5.00microns plating thickness
- Typical 6-12 months shelf life
- 10°C to 25°C storage temperature
- 0.13mm base material thickness
- 2.00mm height, 38.56mm length, 25.86mm width
Technical Specifications
| Shielding Type | EMI Shielding |
|---|---|
| Product Length | 38.1mm |
| Product Depth | 6mm |
| SVHC | No SVHC (07-Nov-2024) |
| Gasket Material | Cold Rolled Steel |
|---|---|
| Product Width | 25.4mm |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85299096 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (07-Nov-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .001156 |
