28L0138-40R-10
Ferrite Bead, Axial Leaded, 135 ohm, 5 A, 28L0138 Series, 0.01 ohm

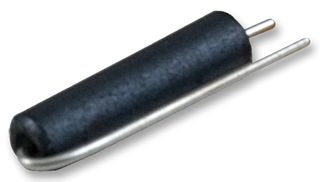

Image is for illustrative purposes only. Please refer to product description.
10,237 In Stock
Need more?
10237 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 10+ | RM0.798 |
| 100+ | RM0.569 |
| 500+ | RM0.441 |
| 1000+ | RM0.349 |
| 2250+ | RM0.347 |
| 4500+ | RM0.345 |
Price for:Each (Supplied on Cut Tape)
Minimum: 10
Multiple: 10
RM7.98
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerLAIRD
Manufacturer Part No28L0138-40R-10
Order Code2292305
Technical Datasheet
Ferrite Bead Case / PackageAxial Leaded
Impedance135ohm
DC Current Rating5A
DC Resistance Max0.01ohm
Impedance Tolerance-
Product Length8.89mm
Product Width-
Product Height-
Ferrite MountingThrough Hole
Operating Temperature Min-40°C
Operating Temperature Max125°C
Qualification-
SVHCNo SVHC (07-Nov-2024)
Product Overview
The 28L0138-40R-10 is a ferrite EMI Bead with 100% tin-plated terminal. It is suitable for through-hole applications.
- Differential mode EMI filters
- High current
- Low DCR
- Oxygen-free copper flat wire
Applications
Industrial
Technical Specifications
Ferrite Bead Case / Package
Axial Leaded
DC Current Rating
5A
Impedance Tolerance
-
Product Width
-
Ferrite Mounting
Through Hole
Operating Temperature Max
125°C
SVHC
No SVHC (07-Nov-2024)
Impedance
135ohm
DC Resistance Max
0.01ohm
Product Length
8.89mm
Product Height
-
Operating Temperature Min
-40°C
Qualification
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85049011
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00041
