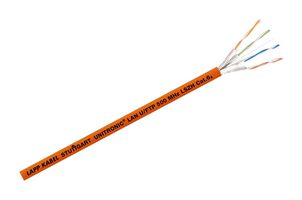

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | LAPP |
|---|---|
| Manufacturer Part No | 2170143Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1504116 |
| Your Part Number | |
| Technical Datasheet |
12 In Stock
Need more?
12 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM14.390 |
| 10+ | RM13.910 |
| 25+ | RM13.430 |
| 50+ | RM12.470 |
Price for:1 Metre
Minimum: 1
Multiple: 1
RM14.39
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | LAPP |
|---|---|
| Manufacturer Part No | 2170143Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1504116 |
| Technical Datasheet | |
| Cable Shielding | Screened |
| LAN Category | Cat6a |
| Wire Gauge | 23AWG |
| Conductor Area CSA | 0.255mm² |
| Reel Length (Imperial) | - |
| Reel Length (Metric) | - |
| No. of Pairs | 4 Pair |
| Jacket Colour | Grey |
| No. of Max Strands x Strand Size | 23 x 1AWG |
| Voltage Rating | - |
| Jacket Material | PVC |
| Conductor Material | Copper |
| External Diameter | 7.1mm |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
The 2170143 is a 4-pair grey CAT-6a STP Data Cable for transmission of digital and analogue signals up to 500MHz. The cable is designed for horizontal cablings subsystems as connection between a floor distribution and the telecommunication outlets (TO's). It is made of 23AWG/1 bare copper conductor. It with skin-foam-skin PE insulation.
- CPR: Not Yet Qualified
- Plastic laminated aluminium foil pair screening
- Braid of copper wire and 0.10mm tinned wire screening
- 150Ω/km Maximum resistance (loop)
- 5GΩ x km Minimum insulation resistance
- 45nF/km Nominal mutual capacitance
- <lt/>425ns/100m Signal propagation time
- <gt/>75dB (up to 600MHz) Screening attenuation
- 700VAC Test voltage
Applications
Communications & Networking
Notes
Splice-free continuous cable is available (Max Length : 100 meters). Packaging is based on order size: < 10 Meters: Coil/Bag Pack, > 10 Meters: Paper Spool Pack.
Technical Specifications
| Cable Shielding | Screened |
|---|---|
| Wire Gauge | 23AWG |
| Reel Length (Imperial) | - |
| No. of Pairs | 4 Pair |
| No. of Max Strands x Strand Size | 23 x 1AWG |
| Jacket Material | PVC |
| External Diameter | 7.1mm |
| SVHC | No SVHC (25-Jun-2025) |
| LAN Category | Cat6a |
|---|---|
| Conductor Area CSA | 0.255mm² |
| Reel Length (Metric) | - |
| Jacket Colour | Grey |
| Voltage Rating | - |
| Conductor Material | Copper |
| Product Range | - |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85444995 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .056145 |
