2008352
Laser Diode, Visible, 635 nm, 3 Pins, 5 mW

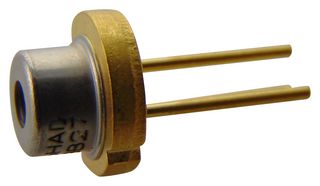

Image is for illustrative purposes only. Please refer to product description.
No Longer Stocked
Product Information
ManufacturerLASER COMPONENTS
Manufacturer Part No2008352
Order Code1272657
Technical Datasheet
No. of Pins3Pins
Diode Case Style-
Output Power5mW
Data Rate Max-
Laser Class-
Operating Temperature Min-10°C
Operating Temperature Max50°C
Current Rating33mA
Product Range-
Product Overview
The 2008352 from Laser Components is a visible laser diode with PCB pins. This device is used for high precision measuring instruments, high precision industrial laser markers, survey and engineering instruments.
- Typical wavelength of 635nm
- High assembly accuracy
- High monitor current
- High temperature operation
- Typical current of 33mA
- Typical operating voltage of 2.2V
- Output power of 5mW
- Operating temperature range from -10°C to 50°C
Applications
Industrial
Technical Specifications
No. of Pins
3Pins
Output Power
5mW
Laser Class
-
Operating Temperature Max
50°C
Product Range
-
Diode Case Style
-
Data Rate Max
-
Operating Temperature Min
-10°C
Current Rating
33mA
Technical Docs (1)
Associated Products
5 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85414100
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.002722
