FGG.0B.305.CLAD52Z
Circular Connector, Standard Circular Connector, 0B Series, Cable Mount Plug, 5 Contacts
591 In Stock
100 more incoming. You can reserve stock now
3 Delivery in 1-2 Business Days(SG stock)
588 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM150.570 |
| 10+ | RM147.870 |
| 25+ | RM139.180 |
| 100+ | RM127.050 |
| 250+ | RM119.830 |
| 500+ | RM117.440 |
Price for:Each
Minimum: 1
Multiple: 1
RM150.57
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | LEMO |
|---|---|
| Manufacturer Part No | FGG.0B.305.CLAD52ZCopy |
| Manufacturer Standard Lead Time | 22 weeks |
| Order Code | 3817258 |
| Product Range | 0B Series |
| Technical Datasheet | |
| Connector Type | Standard Circular Connector |
| Product Range | 0B Series |
| Circular Connector Shell Style | Cable Mount Plug |
| No. of Contacts | 5Contacts |
| Circular Connector Contact Type | Solder Pin |
| Coupling Style | Push-Pull |
| Connector Body Material | Brass Body |
| Connector Body Plating | Chrome |
| Contact Material | Brass |
| Contact Plating | Gold |
| IP Rating | IP50 |
| SVHC | No SVHC (14-Jun-2023) |
Product Overview

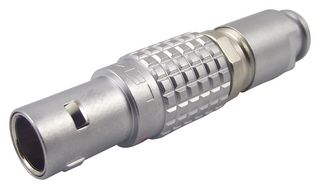

The FGG.0B.305. CLAD52Z from Lemo is a 0B series multipole circular straight plug connector with 5 pin contacts. It has keying system for connector alignment. It also has cable collet and nut for fitting bend relief. This circular connector is specifically designed for indoor applications.
- Rated current of 6.5A
- Chrome plated brass outer shell and collet nut
- Nickel plated brass latch sleeve and mid pieces
- PEEK (polyetheretherketone) insulation
- UL recognised and CE marked
- Cable fixing diameter from 4.3mm to 5.2mm
- IP50 protection index (mated)
- High temperature range from -55°C to 250°C
- Maximum solid and stranded conductor size is 22AWG (0.34mm²)
- Push-pull self latching connection system
Applications
Industrial
Technical Specifications
| Connector Type | Standard Circular Connector |
|---|---|
| Circular Connector Shell Style | Cable Mount Plug |
| Circular Connector Contact Type | Solder Pin |
| Connector Body Material | Brass Body |
| Contact Material | Brass |
| IP Rating | IP50 |
| Product Range | 0B Series |
|---|---|
| No. of Contacts | 5Contacts |
| Coupling Style | Push-Pull |
| Connector Body Plating | Chrome |
| Contact Plating | Gold |
| SVHC | No SVHC (14-Jun-2023) |
Alternatives for FGG.0B.305.CLAD52Z
1 Product Found
Associated Products
5 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (14-Jun-2023) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .009 |
