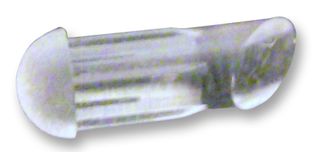

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MENTOR |
|---|---|
| Manufacturer Part No | 1282.3000Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 4327780 |
| Your Part Number | |
| Technical Datasheet |
7,627 In Stock
Need more?
7,627 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM8.050 |
| 10+ | RM5.770 |
| 25+ | RM5.200 |
| 50+ | RM4.830 |
| 100+ | RM4.460 |
| 500+ | RM3.990 |
Price for:Each
Minimum: 1
Multiple: 1
RM8.05
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MENTOR |
|---|---|
| Manufacturer Part No | 1282.3000Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 4327780 |
| Technical Datasheet | |
| Length | 7.2mm |
| No. of Light Pipes | 1Pipes |
| Light Pipe Shape | Circular |
| Mounting Orientation | Horizontal |
| Light Pipe Mounting | Surface |
| Light Pipe Colour | Transparent |
| Product Range | - |
| SVHC | To Be Advised |
Product Overview
The 1282.3000 is a Light Guide with transparent pipe, surface mounting and circular-shaped light pipe. This light guide may be used in many different ways. Variations with SMD TOPLEDs or SMD CHIPLEDs may be inserted. Easy assembly by just pressing into the front panel drilling. This light guide can be combined with LED type displays with even surfaces, phases to ease visualization and flush fastening to the front panel.
- Clear PC LL-material
- UL94V-0 Flammability rating
- 10 to <lt/>12kV ESD protection
Applications
Lighting
Warnings
ESD resistance reaches 10kV for a length A of 4.5mm. ESD resistance increases approximately by 1kV for every millimetre of length.
Technical Specifications
| Length | 7.2mm |
|---|---|
| Light Pipe Shape | Circular |
| Light Pipe Mounting | Surface |
| Product Range | - |
| No. of Light Pipes | 1Pipes |
|---|---|
| Mounting Orientation | Horizontal |
| Light Pipe Colour | Transparent |
| SVHC | To Be Advised |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90019000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000454 |
