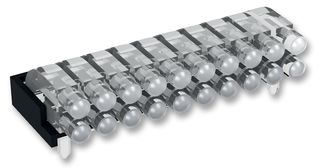

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MENTOR |
|---|---|
| Manufacturer Part No | 1296.2012Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 2300641 |
| Your Part Number | |
| Technical Datasheet |
583 In Stock
Need more?
583 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM10.800 |
| 10+ | RM7.730 |
| 25+ | RM6.970 |
| 50+ | RM6.470 |
| 100+ | RM5.970 |
| 500+ | RM5.350 |
Price for:Each
Minimum: 1
Multiple: 1
RM10.80
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MENTOR |
|---|---|
| Manufacturer Part No | 1296.2012Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 2300641 |
| Technical Datasheet | |
| Length | 11.85mm |
| No. of Light Pipes | 2Pipes |
| Light Pipe Shape | Circular |
| Light Pipe Mounting | PC Board |
| Light Pipe Colour | Transparent |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2020) |
Product Overview
- Ø2mm lying miniature multiple light guide for use with R2 to R3 and R11 to R13 LEDs
- Designed for the use of type 0603 CHIPLEDs or smaller type
- Grid dimension is 2.54mm
- 20 radiating surfaces
- UL94 flammability rating
- Less than 8KV ESD protection
Technical Specifications
| Length | 11.85mm |
|---|---|
| Light Pipe Shape | Circular |
| Light Pipe Colour | Transparent |
| SVHC | No SVHC (25-Jun-2020) |
| No. of Light Pipes | 2Pipes |
|---|---|
| Light Pipe Mounting | PC Board |
| Product Range | - |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90019000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2020) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .004536 |
