RV-8564-C2

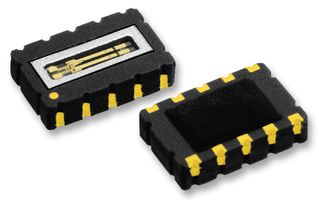

The RV-8564-C2 is a Real Time Clock (RTC) Module combines the 32.768kHz tuning fork crystal resonator with the CMOS based oscillator and RTC IC inside a miniature SMD ceramic package. This very small SMD ceramic package has been specially designed to combine the 32.768kHz crystal unit with the CMOS-based oscillator and real-time-clock circuit. The calendar function tracks year, month, date and day-of-the-week with built-in century and leap-year flags. The clock function tracks minute and second in 24-hour format. Programmable alarm setting and universal timer functions increase flexibility.

• Automotive qualified, according to AEC-Q200 Rev. C
• Xtal integrated solution
• Miniature SMT ceramic package
• Ultra low power consumption
• Very tight frequency tolerance I²C bus interface (400kHz)
• Programmable clock-output
• Low aging
• Time keeping mode down to 1.2V
• Programmable alarm, timer and interrupt functions

Applications

Clock & Timing, Automotive

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
