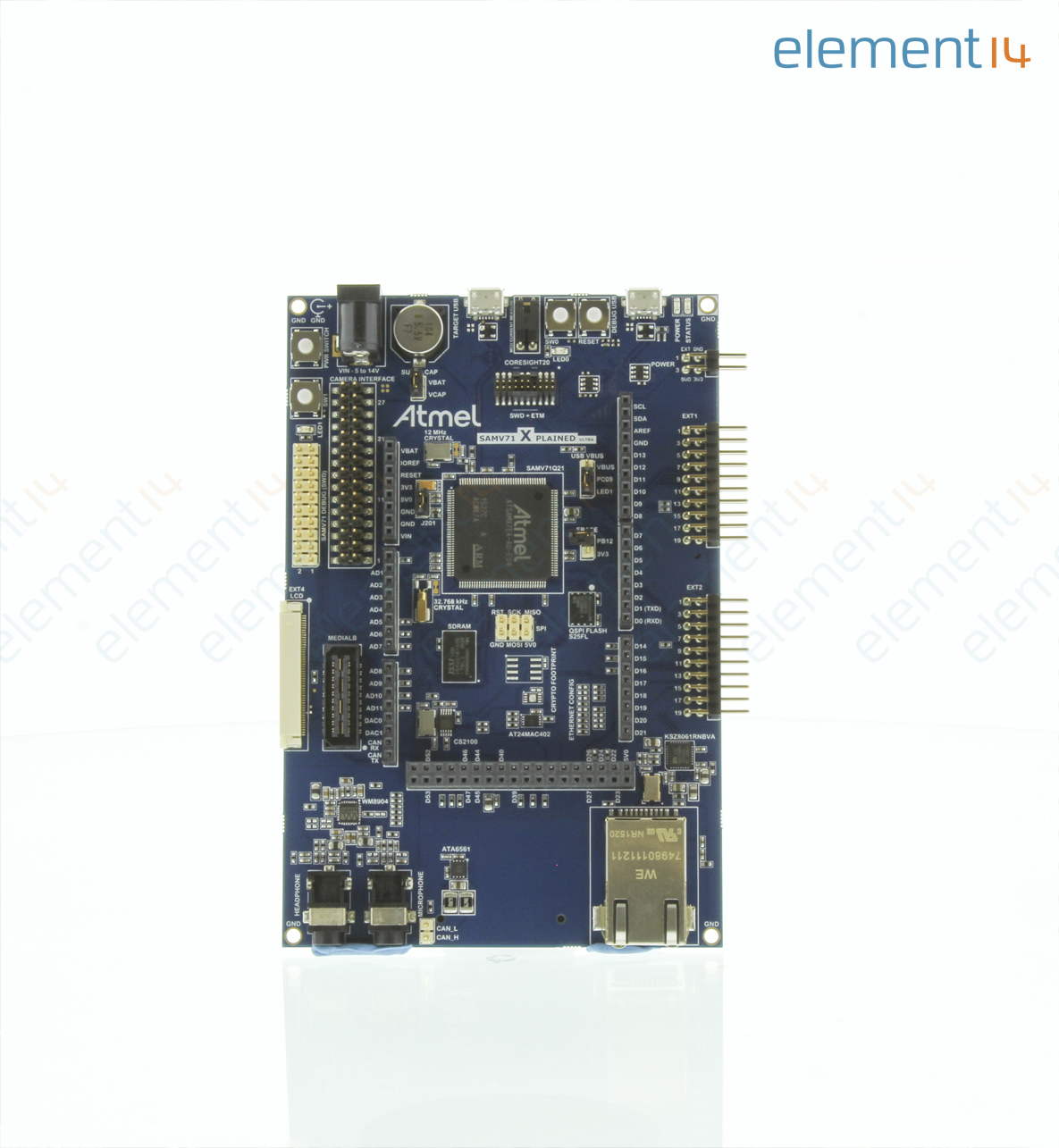

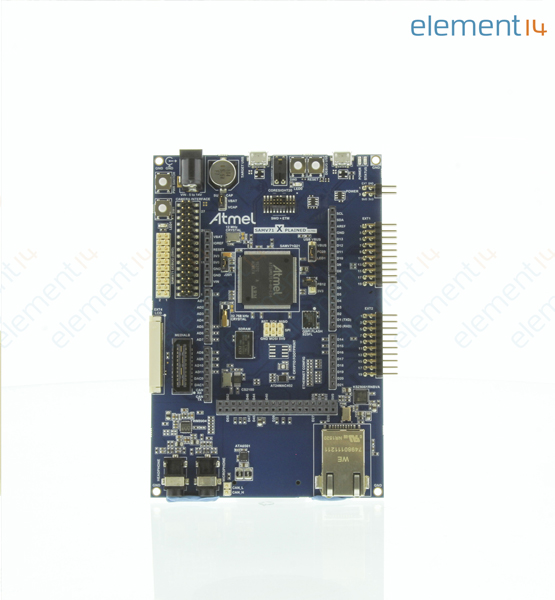

Evaluation Board, SAM V71/V70/S70/E70 MCU's, Xplained Ultra, Mechanical Buttons


Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Order Code:
Technical Datasheet:
ATSAMV71-XULT   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×







Eval Board ATSAMV71Q21


Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (4)

Product Overview

SAM V71 Xplained ultra EVK ideal for evaluating and prototyping with the SAM V71, SAM V70, SAM S70 and SAM E70 ARM® Cortex®-M7 based microcontrollers. Xplained Pro extension kits compatible with SAM V71 Xplained Ultra. It features ATSAMV71Q21 microcontroller, One mechanical reset button, one power switch button, two mechanical user pushbuttons, two yellow user LEDs, supercap backup, 12MHz crystal, 32.768KHz crystal, 2MB SDRAM, 2 MB QSPI flash, IEEE 802.3az 10Base-T/100Base-TX with KSZ8061 Ethernet PHY via RMII, AT24MAC402 256KByte EEPROM with EUI-48 address, Stereo audio codec - External PLL for precise clock generation, microphone jack, headphone jack, ATA6561 CAN transceiver and camera interface connector, Embedded Debugger (Auto-ID for board identification in Atmel Studio, one yellow status LED, one green board power LED, Symbolic debug of complex data types including scope information, programming and debugging, data Gateway Interface: SPI, I2C, 4 GPIOs, virtual COM port (CDC)).
  • MediaLB connector
  • Two Xplained Pro extension headers
  • One Xplained Pro LCD header
  • Coresight 20 connector for 4bit ETM
  • Arduino due compatible shield connectors
  • External debugger connector
  • USB interface, device and host mode
  • External power input (5-14V)
  • USB powered
  • J600 (SD socket connector)


90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.


Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Available for back order

Deliveries start from 11/8/23
