DT100112
DEVELOPMENT BOARD, BLUETOOTH LOW ENERGY

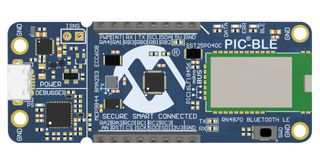

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | DT100112Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 3288143 |
| Your Part Number | |
| Technical Datasheet |
32 In Stock
Need more?
32 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM125.450 |
Price for:Each
Minimum: 1
Multiple: 1
RM125.45
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | DT100112Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 3288143 |
| Technical Datasheet | |
| Silicon Manufacturer | Microchip |
| Silicon Core Number | RN4870 |
| Kit Application Type | Wireless Communication |
| Application Sub Type | Bluetooth Low Energy |
| Core Architecture | PIC |
| Core Sub-Architecture | - |
| Silicon Family Name | PIC16F |
| Kit Contents | Development Board PIC-BLE RN4870 |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
PIC-BLE development board makes wireless applications development quick and easy. It combines an eXtreme Low Power (XLP) PIC16LF18456 microcontroller, an ATECC608A CryptoAuthentication™ secure element and the RN4870 Bluetooth Low Energy Module. The board USB interface provides a convenient serial port (virtual UART), the simplicity of drag and drop programming, but also full programmer and debugger capabilities supported by an award-winning Integrated Development Environment (IDE) - Microchip MPLAB® X IDE.
- BMA253 acceleration sensor
- MCP9844 temperature sensor
- SST25PF040CT 4Mb serial flash
- mikroBUS header, connect 700+ sensors and actuators
- Two user LEDs
- Push button
- On-board USB interface
- USB and battery powered (CR2032)
Technical Specifications
| Silicon Manufacturer | Microchip |
|---|---|
| Kit Application Type | Wireless Communication |
| Core Architecture | PIC |
| Silicon Family Name | PIC16F |
| Product Range | - |
| Silicon Core Number | RN4870 |
|---|---|
| Application Sub Type | Bluetooth Low Energy |
| Core Sub-Architecture | - |
| Kit Contents | Development Board PIC-BLE RN4870 |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (2)
Associated Products
8 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .028123 |
