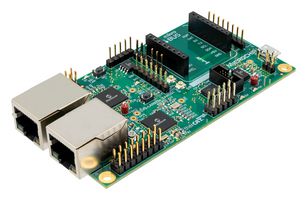

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | EV50P30ACopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 3604422 |
| Your Part Number | |
| Technical Datasheet |
1 In Stock
Need more?
1 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM722.030 |
Price for:Each
Minimum: 1
Multiple: 1
RM722.03
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | EV50P30ACopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 3604422 |
| Technical Datasheet | |
| Kit Application Type | Interface |
| Application Sub Type | EtherCAT Slave Controller |
| Silicon Manufacturer | Microchip |
| Silicon Core Number | LAN9253 |
| Product Range | - |
| Kit Contents | Evaluation Board LAN9253 |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
EVB-LAN9253-D51 allows engineers to develop using the LAN9253 ESC together with a Cortex M4F Microcontroller. Peripherals are provided on board with expansion via the popular mikroBUS Click Board™ interface. This hardware is fully supported within the Microchip Harmony Framework. A identical board is available that carries LAN9252. Between these two platforms a user can observe pin compatibility and a migration path from LAN9252 towards LAN9253.
- LAN9253 EtherCAT device controller with integrated PHYs
- SAMD51 cortex M4F microcontroller
- EtherCAT Technology Group (ETG) conformance tested
- Supported within the microchip harmony framework
- Dual integrated physical interfaces (EtherCAT IN / EtherCAT OUT)
- 16 GPIO, UART interface
- mikroBUS Click Board™ interface
- EtherCAT RUN & EtherCAT ERROR LEDs
- EtherCAT distributed clock, Sync0 & Sync1 signals
Technical Specifications
| Kit Application Type | Interface |
|---|---|
| Silicon Manufacturer | Microchip |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
| Application Sub Type | EtherCAT Slave Controller |
|---|---|
| Silicon Core Number | LAN9253 |
| Kit Contents | Evaluation Board LAN9253 |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .453592 |
