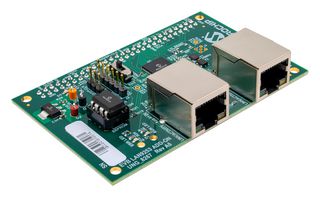

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | EV83U94ACopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 3604424 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM817.370 |
Price for:Each
Minimum: 1
Multiple: 1
RM817.37
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | EV83U94ACopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 3604424 |
| Technical Datasheet | |
| Kit Application Type | Interface |
| Application Sub Type | EtherCAT Slave Controller |
| Silicon Manufacturer | Microchip |
| Silicon Core Number | LAN9253 |
| Product Range | - |
| Kit Contents | Eval Board LAN9253 |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
EVB-LAN9253-ADD-ON is designed to be used as an add-on board (ESC board) with the Beckhoff EL9800 or EL9820 EtherCAT evaluation platforms. This board supports the SPI and DIGIO PDI modes of operation.
- EVB-LAN9253-DIGIO supports options to select DIG-IO PDI and SPI configurations
- On-board ESC EEPROM to configure the EtherCAT device configuration
- Supports two Integrated PHYs via on board RJ45 8P8C Connectors
Technical Specifications
| Kit Application Type | Interface |
|---|---|
| Silicon Manufacturer | Microchip |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
| Application Sub Type | EtherCAT Slave Controller |
|---|---|
| Silicon Core Number | LAN9253 |
| Kit Contents | Eval Board LAN9253 |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Thailand Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .453592 |
