| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | EVB-LAN7500-LCCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2292563 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM1,277.500 |
Product Information
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | EVB-LAN7500-LCCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2292563 |
| Technical Datasheet | |
| Kit Application Type | Interface |
| Application Sub Type | USB 2.0 to 10/100/1000 Ethernet Controller |
| Silicon Manufacturer | SMSC |
| Silicon Core Number | LAN7500 |
| Product Range | - |
| Kit Contents | Evaluation Board LAN7500 |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

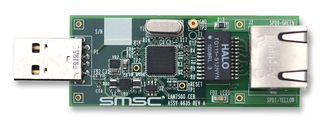

EVB-LAN7500-LC is an evaluation board that utilizes the LAN7500 to provide a fully functional, bus powered USB to Ethernet interface. The EVB-LAN7500-LC provides a fully integrated Ethernet port and USB port via the onboard RJ45 and USB Type A connectors. The onboard 4K EEPROM is used to load the EVB-LAN7500-LC's USB configuration parameters and MAC address. The LAN7500 is a high performance Hi-Speed USB 2.0 to 10/100/1000 Ethernet controller. The LAN7500 contains an integrated 10/100/1000 Ethernet MAC and PHY, Filtering Engine, USB PHY, Hi-Speed USB 2.0 device controller, TAP controller, EEPROM controller, and a FIFO controller with a total of 32KB of internal packet buffering. The Ethernet controller supports auto-negotiation, auto-polarity correction, HP Auto-MDIX, and is compliant with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab standards. ARP and NS offload is also supported.
- Single chip, hi-speed USB 2.0 to 10/100/1000 gigabit Ethernet controller
- Implements NetDetach™ technology for reduced system power consumption
- Supports EEPROM-less operation for reduced BOM costs
- Requires only a single 25MHz crystal
- Easy upgrade for USB based 10/100 Ethernet to 10/100/1000 Gigabit Ethernet
- Supports IEEE 802.3/802.3u/802.3ab standards
Notes
90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
Technical Specifications
| Kit Application Type | Interface |
|---|---|
| Silicon Manufacturer | SMSC |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
| Application Sub Type | USB 2.0 to 10/100/1000 Ethernet Controller |
|---|---|
| Silicon Core Number | LAN7500 |
| Kit Contents | Evaluation Board LAN7500 |
Technical Docs (2)
Alternatives for EVB-LAN7500-LC
1 Product Found
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85423990 |
| US ECCN: | 5A991.b.4.b |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .155582 |
