| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | EVB8740Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2292559 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM1,318.110 |
Product Information
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | EVB8740Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2292559 |
| Technical Datasheet | |
| Kit Application Type | Interface |
| Application Sub Type | Ethernet PHY |
| Silicon Manufacturer | Microchip |
| Silicon Core Number | LAN8740 |
| Product Range | - |
| Kit Contents | Eval Board LAN8740 |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

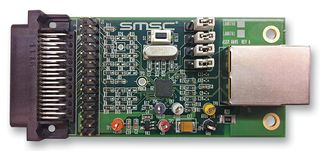

EVB8740 is a PHY evaluation board that interfaces a Media Independent Interface (MII) MAC controller to the LAN8740A Ethernet MII PHY via a standard 40 pin MII connector. The LAN8740A is connected to an RJ45 Ethernet jack with integrated magnetics for 10/100 connectivity. The LAN8740A is a low power, 10BASE-T/100BASE-TX physical layer (PHY) transceiver with variable I/O voltage that is compliant with the IEEE 802.3, 802.3u, and 802.3az (Energy Efficient Ethernet) standards. Energy Efficient Ethernet (EEE) support results in significant power savings during low link utilizations.
- Single chip Ethernet PHY
- Comprehensive flexPWR technology
- Energy Efficient Ethernet (IEEE 802.3az)
- Cable diagnostics
- Deterministic latency
- Uses a low cost 25MHz crystal for RMII mode to drive 50MHz output
- Wake on LAN
- HP Auto-MDIX support
Applications
Consumer Electronics, Portable Devices, Industrial, Test & Measurement, Wireless, Communications & Networking
Notes
90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
Technical Specifications
| Kit Application Type | Interface |
|---|---|
| Silicon Manufacturer | Microchip |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
| Application Sub Type | Ethernet PHY |
|---|---|
| Silicon Core Number | LAN8740 |
| Kit Contents | Eval Board LAN8740 |
Technical Docs (2)
Alternatives for EVB8740
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84715000 |
| US ECCN: | 5A991.b.4.b |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .164654 |
