| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | MCP2515DM-PTPLSCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 1676255 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | RM305.610 |
Product Information
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | MCP2515DM-PTPLSCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 1676255 |
| Technical Datasheet | |
| Kit Application Type | Interface |
| Application Sub Type | CAN |
| Silicon Manufacturer | Microchip |
| Silicon Core Number | MCP2515, MCP2551 |
| Product Range | - |
| Kit Contents | Board Only |
| SVHC | Lead (04-Feb-2026) |
Product Overview

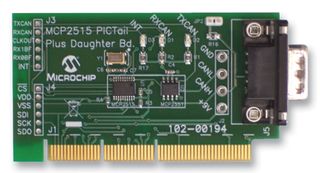

The MCP2515DM-PTPLS is a simple Controller Area Network(CAN). The MCP2515 PICtail Plus daughter board designed to be used with boards containing the PICtail Plus connector. The board has PICkit Serial connector for interfacing to PICkit Serial Analyzer tool. The CAN node consists of the MCP2515 stand slone CAN controller that implements CAN specification, version 2.0B which is capable of transmitting and receiving both standard and extended data and remote frames. And MCP2551 a high speed CAN transceiver which is fault tolerant device that serves as interface between a CAN protocol controller and physical bus. The MCP2551 device provide differential transmit and receive capability for the CAN protocol controller. The PICkit Plus and PICkit Serial connectors allow the board to be interfaced to a variety of PICmicros so that the user can develop a CAN node. The board also contains headers or test points for most of MCP2515 pins to allow the external functions to be monitored/evaluated.
- PICtail Plus connector for attaching to Explorer 16 and other main boards with the connector
- DB9 connector for connecting to CAN networks using the pseudo standard pinout
- Footprint for terminal block connector for the CAN bus
- One shot mode ensures message transmission is attempted only once
- Databyte filtering, Start of Frame (SOF) output
- Supports 1 Mb/s operation
- High noise immunity due to differential bus implementation
Applications
Communications & Networking, Automotive
Contents
MCP2515 PICtail Plus Daughter Board, CD ROM
Notes
90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
Technical Specifications
| Kit Application Type | Interface |
|---|---|
| Silicon Manufacturer | Microchip |
| Product Range | - |
| SVHC | Lead (04-Feb-2026) |
| Application Sub Type | CAN |
|---|---|
| Silicon Core Number | MCP2515, MCP2551 |
| Kit Contents | Board Only |
Alternatives for MCP2515DM-PTPLS
8 Products Found
Associated Products
7 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85423990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .117934 |
