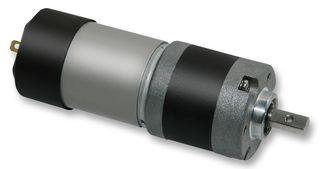

MICROMOTORS E192-24-5

Geared DC Motor, Brushed, 24 V, 830 rpm, 20 N-cm, 22.8 W, 5

MICROMOTORS E192-24-5
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
E192-24-5
Order Code:
1784836
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Product Range
E192
Technical Datasheet:
E192-24-5   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Range Selector (E192)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Brushed

:
24V

:
830rpm

:
20N-cm

:
22.8W

:
5

:
40.5mm

:
86mm

:
E192

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

Product Overview

The E192-24-5 is an E192 Series 22.8W/24VDC Geared Motor with 575RPM rotational speed, 20Ncm maximum torque. This motor features motor interference suppression by VDR and capacitors, direction of rotation depending on polarity, can be mounted in any position, low-backlash precision grade planetary gearboxes with dual bearing output shaft support for maximum life and load-carrying capacity, offers 5:1 gear ratio, brushed DC drives fitted with interference-suppression electronics, motor termination is via convenient spade terminals. They are equipped with rear-output shaft as an optional to mount an encoder or position sensor.
  • Planetary gear-motor
  • Motor interference suppression by VDR and capacitors
  • Outgoing shaft two ball bearings supported
  • Maximum radial shaft load: 200N
  • Maximum axial shaft load: 100N
  • Can be mounted in any position
  • 40.5mm Diameter
  • 86mm Length
  • -20 to 60°C Temperature working range

Applications

Motor Drive & Control
