MTC8C1084S1UC48BA1

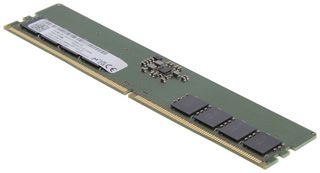

RAM Memory Module, 16 GB, 2.4 GHz, PC5-4800, 288-Pin DDR5 SDRAM UDIMM, Desktop UDIMM, 2G x 64bit
Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MICRON |
|---|---|
| Manufacturer Part No | MTC8C1084S1UC48BA1Copy |
| Order Code | 3861337 |
| Your Part Number | |
| Technical Datasheet |
No Longer Manufactured
Product Information
| Manufacturer | MICRON |
|---|---|
| Manufacturer Part No | MTC8C1084S1UC48BA1Copy |
| Order Code | 3861337 |
| Technical Datasheet | |
| Memory Density | 16GB |
| Memory Speed | 2.4GHz |
| Module Memory | PC5-4800 |
| Module Form Factor | 288-Pin DDR5 SDRAM UDIMM |
| Memory Application | Desktop UDIMM |
| Memory Configuration | 2G x 64bit |
| Supply Voltage Min | - |
| Supply Voltage Max | - |
| Supply Voltage Nom | - |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 95°C |
| Product Range | - |
| SVHC | No SVHC (17-Dec-2015) |
Product Overview
MTC8C1084S1UC48BA1 is a DDR5 SDRAM UDIMM.
- 288-pin, DDR5 unbuffered dual in-line memory module (DDR5 UDIMM)
- Fast data transfer rate: PC5-4800, PC5-5600
- Single-rank, 32 internal banks; 8 groups of 4 banks each
- 16GB module density, 2Gb x 64 configuration
- 38.4GB/s module bandwidth
- 0.416ns/4800MT/s memory clock/data rate
- 40-39-39 clock cycles (CL-nRCD-nRP)
- Commercial operating temperature range from 0°C ≤ TOPER ≤ 95°C
Technical Specifications
| Memory Density | 16GB |
|---|---|
| Module Memory | PC5-4800 |
| Memory Application | Desktop UDIMM |
| Supply Voltage Min | - |
| Supply Voltage Nom | - |
| Operating Temperature Max | 95°C |
| SVHC | No SVHC (17-Dec-2015) |
| Memory Speed | 2.4GHz |
|---|---|
| Module Form Factor | 288-Pin DDR5 SDRAM UDIMM |
| Memory Configuration | 2G x 64bit |
| Supply Voltage Max | - |
| Operating Temperature Min | 0°C |
| Product Range | - |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Namibia Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (17-Dec-2015) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .015694 |
