Print Page
16-02-0102
Contact, C-Grid®, SL 70058, Socket, Crimp, 22 AWG, Tin Plated Contacts
117,291 In Stock
4,000 more incoming. You can reserve stock now
3303 Delivery in 1-2 Business Days(SG stock)
56889 Delivery in 3-4 Business Days(UK stock)
57099 Delivery in 4-5 Business Days(US stock)
| Quantity | Price |
|---|---|
| 1+ | RM0.638 |
| 10+ | RM0.560 |
| 25+ | RM0.530 |
| 50+ | RM0.506 |
| 100+ | RM0.484 |
| 250+ | RM0.472 |
Price for:Each
Minimum: 1
Multiple: 1
RM0.64
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No16-02-0102
Order Code1462562
Product RangeSL 70058
Also Known As70058-0222, GTIN UPC EAN: 800753595637
Technical Datasheet
Product RangeSL 70058
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max22AWG
Contact PlatingTin Plated Contacts
For Use WithMolex SL 70066 & 70450 Series Housing Connectors
Wire Size AWG Min24AWG
Contact MaterialPhosphor Bronze
SVHCNo SVHC (21-Jan-2025)
Product Overview

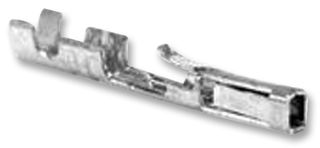

The 16-02-0102 is a crimp terminal for 70058 SL™ series connectors. It accepts 22 to 24 AWG cable conductor size and made of phosphor bronze with tin-plated finish.
- Wire insulation diameter is 1.63mm
Applications
Automotive, Commercial Vehicle, Communications & Networking, Consumer Electronics, Industrial, Medical
Technical Specifications
Product Range
SL 70058
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
24AWG
SVHC
No SVHC (21-Jan-2025)
Contact Gender
Socket
Wire Size AWG Max
22AWG
For Use With
Molex SL 70066 & 70450 Series Housing Connectors
Contact Material
Phosphor Bronze
Technical Docs (3)
Alternatives for 16-02-0102
8 Products Found
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Malaysia
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Malaysia
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000045
