45130-0401
Cable Assembly, Nano-Fit Receptacle to Nano-Fit Receptacle, 4 Ways, 2.5 mm, 2 Row, 150 mm, 5.9 "

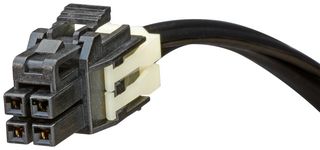

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MOLEX |
|---|---|
| Manufacturer Part No | 45130-0401Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 2747305 |
| Product Range | Nano-Fit OTS 45130 Series |
| Also Known As | 451300401, 45130-0401 |
| Your Part Number | |
| Technical Datasheet |
7 In Stock
Need more?
7 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM27.640 |
| 10+ | RM27.050 |
| 100+ | RM26.450 |
| 250+ | RM25.930 |
| 500+ | RM25.400 |
| 1000+ | RM24.870 |
Price for:Each
Minimum: 1
Multiple: 1
RM27.64
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MOLEX |
|---|---|
| Manufacturer Part No | 45130-0401Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 2747305 |
| Product Range | Nano-Fit OTS 45130 Series |
| Also Known As | 451300401, 45130-0401 |
| Technical Datasheet | |
| Connector to Connector | Nano-Fit Receptacle to Nano-Fit Receptacle |
| No. of Positions | 4Ways |
| Connector Pitch | 2.5mm |
| No. of Rows | 2 Row |
| Cable Length - Metric | 150mm |
| Cable Length - Imperial | 5.9" |
| Product Range | Nano-Fit OTS 45130 Series |
| Wire Gauge | 20AWG |
| Jacket Colour | Black |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
- Nano-Fit TPA OTS discrete cable assembly carries 6.5A current in a small package
- Pin-to-pin mapping from receptacle to PCB header
- Space savings for design flexibility
Applications
Consumer Electronics, Commercial Vehicle, Industrial, Medical
Technical Specifications
| Connector to Connector | Nano-Fit Receptacle to Nano-Fit Receptacle |
|---|---|
| Connector Pitch | 2.5mm |
| Cable Length - Metric | 150mm |
| Product Range | Nano-Fit OTS 45130 Series |
| Jacket Colour | Black |
| No. of Positions | 4Ways |
|---|---|
| No. of Rows | 2 Row |
| Cable Length - Imperial | 5.9" |
| Wire Gauge | 20AWG |
| SVHC | No SVHC (25-Jun-2025) |
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85444290 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .013608 |
