2214S-40SG-85

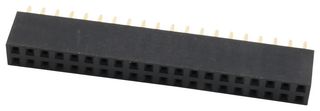

PCB Receptacle, Board-to-Board, 2.54 mm, 2 Rows, 40 Contacts, Through Hole Mount
Image is for illustrative purposes only. Please refer to product description.
6,826 In Stock
12,800 more incoming. You can reserve stock now
126 Delivery in 1-2 Business Days(SG stock)
6700 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM11.410 |
| 50+ | RM6.810 |
| 100+ | RM6.300 |
| 200+ | RM5.180 |
Price for:Each
Minimum: 1
Multiple: 1
RM11.41
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part No2214S-40SG-85
Order Code2847248
Technical Datasheet
Connector SystemsBoard-to-Board
Pitch Spacing2.54mm
No. of Rows2Rows
No. of Contacts40Contacts
Connector MountingThrough Hole Mount
Product Range-
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
SVHCNo SVHC (21-Jan-2025)
Product Overview
2214S-40SG-85 PCB Receptacle is a board-to-board connector with 40 contacts arranged in 2 rows and a 2.54mm pitch. This through-hole mount receptacle is designed to interface with pin headers for reliable electrical connections between printed circuit boards.
- 40 contacts facilitate multiple connections between boards, suitable for complex configurations
- Ensures compatibility with a wide range of pin headers and connectors
- Provides secure and stable mounting on PCBs, enhancing connection reliability
- Designed for reliable performance and longevity in demanding electronic environments
- Ideal for various electronic applications requiring robust board-to-board connections
Technical Specifications
Connector Systems
Board-to-Board
No. of Rows
2Rows
Connector Mounting
Through Hole Mount
Contact Material
Copper Alloy
SVHC
No SVHC (21-Jan-2025)
Pitch Spacing
2.54mm
No. of Contacts
40Contacts
Product Range
-
Contact Plating
Gold Plated Contacts
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0037
