8FSM15S-30N4-FEC
D Sub Connector, Standard, Receptacle, 8F, 15 Contacts, DA, IDC / IDT

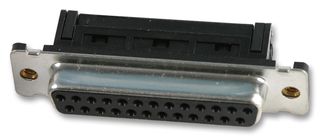

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | 8FSM15S-30N4-FECCopy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 1099303 |
| Product Range | 8F |
| Your Part Number | |
| Technical Datasheet |
2,430 In Stock
Need more?
2,430 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 5+ | RM9.020 |
| 10+ | RM7.070 |
| 25+ | RM5.930 |
| 50+ | RM5.590 |
| 100+ | RM5.360 |
Price for:Each
Minimum: 5
Multiple: 5
RM45.10
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | 8FSM15S-30N4-FECCopy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 1099303 |
| Product Range | 8F |
| Technical Datasheet | |
| D Sub Connector Type | Standard |
| Gender | Receptacle(View Associated Connectors) |
| Product Range | 8F |
| No. of Contacts | 15Contacts |
| D Sub Shell Size | DA |
| Contact Termination Type | IDC / IDT |
| Connector Mounting | Cable Mount |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold over Nickel Plated Contacts |
| Connector Body Material | Metal Body |
| SVHC | To Be Advised |
Product Overview
The 8FSM15S-30N4-FEC is a 15-way 1A metal unthreaded IDC D-subminiature Socket with gold over nickel plated phosphor bronze contacts. This 8FSM series female D-subminiature connector has plastic standard through hole housing and PBT + glass-fibre reinforced insulator. It accepts 28 and 26AWG stranded wire gauge, 1.27mm conductor centre flat cable.
- ≤15mΩ Maximum Contact resistance
- ≥1000MΩ Minimum insulation resistance
- 500VAC for one minute Minimum dielectric withstanding voltage
- -55 to 105°C Operating temperature range
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial, Communications & Networking
Technical Specifications
| D Sub Connector Type | Standard |
|---|---|
| Product Range | 8F |
| D Sub Shell Size | DA |
| Connector Mounting | Cable Mount |
| Contact Plating | Gold over Nickel Plated Contacts |
| SVHC | To Be Advised |
| Gender | Receptacle |
|---|---|
| No. of Contacts | 15Contacts |
| Contact Termination Type | IDC / IDT |
| Contact Material | Phosphor Bronze |
| Connector Body Material | Metal Body |
Technical Docs (1)
Associated Products
3 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .008219 |
