8FSM37P-30N1-FEC

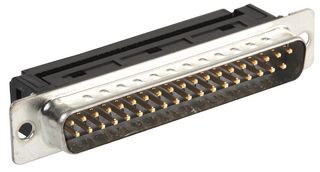

D Sub Connector, Standard, Plug, 8F, 37 Contacts, DC, IDC / IDT
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | 8FSM37P-30N1-FECCopy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 1099301 |
| Product Range | 8F |
| Your Part Number | |
| Technical Datasheet |
1,396 In Stock
Need more?
1,396 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM13.990 |
| 10+ | RM10.980 |
| 25+ | RM9.160 |
| 50+ | RM8.640 |
| 100+ | RM8.280 |
Price for:Each
Minimum: 1
Multiple: 1
RM13.99
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | 8FSM37P-30N1-FECCopy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 1099301 |
| Product Range | 8F |
| Technical Datasheet | |
| D Sub Connector Type | Standard |
| Gender | Plug(View Associated Connectors) |
| Product Range | 8F |
| No. of Contacts | 37Contacts |
| D Sub Shell Size | DC |
| Contact Termination Type | IDC / IDT |
| Connector Mounting | Cable Mount |
| Contact Material | Brass |
| Contact Plating | Gold over Nickel Plated Contacts |
| Connector Body Material | Metal Body |
| SVHC | To Be Advised |
Product Overview
The 8FSM37P-30N1-FEC is a 37-way 1A metal unthreaded IDC D-subminiature Plug with gold over nickel plated brass contacts. This 8FSM series male D-subminiature connector has plastic standard through hole housing and PBT + glass-fibre reinforced insulator. It accepts 28 and 26AWG stranded wire gauge, 1.27mm conductor centre flat cable.
- 15mΩ Maximum contact resistance
- 1000MΩ Minimum insulation resistance
- 500VAC for one minute Minimum dielectric withstanding voltage
- -55 to 105°C Operating temperature range
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial, Communications & Networking
Technical Specifications
| D Sub Connector Type | Standard |
|---|---|
| Product Range | 8F |
| D Sub Shell Size | DC |
| Connector Mounting | Cable Mount |
| Contact Plating | Gold over Nickel Plated Contacts |
| SVHC | To Be Advised |
| Gender | Plug |
|---|---|
| No. of Contacts | 37Contacts |
| Contact Termination Type | IDC / IDT |
| Contact Material | Brass |
| Connector Body Material | Metal Body |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .01394 |
