M141T02-AC0305D

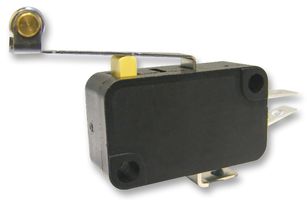

Microswitch, Snap Action, Long Roller Lever, SPDT, Quick Connect, Solder, 10 A
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMULTICOMP PRO
Manufacturer Part NoM141T02-AC0305D
Order Code1735362
Product RangeM141T01
Technical Datasheet
1,737 In Stock
Need more?
1737 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM11.900 |
| 12+ | RM10.480 |
| 100+ | RM9.590 |
| 500+ | RM8.170 |
| 1000+ | RM7.830 |
Price for:Each
Minimum: 1
Multiple: 1
RM11.90
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoM141T02-AC0305D
Order Code1735362
Product RangeM141T01
Technical Datasheet
Microswitch TypeSnap Action
Microswitch ActuatorLong Roller Lever
Contact ConfigurationSPDT
Switch TerminalsQuick Connect, Solder
Contact Voltage DC Nom-
Product RangeM141T01
Product Overview
The M141T02-AC0305D is a single-pole double-throw (SPDT) Microswitch with quick connect solder terminal, OFF-ON function and long roller actuator. The M140T01 series switch has PBT (Polybutylene Terephthalate) case.
- 500mΩ Maximum contact resistance
- 100MΩ at 100VDC Minimum insulation resistance
- 1000VAC for one minute Withstanding voltage
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial
Technical Specifications
Microswitch Type
Snap Action
Contact Configuration
SPDT
Contact Voltage DC Nom
-
Microswitch Actuator
Long Roller Lever
Switch Terminals
Quick Connect, Solder
Product Range
M141T01
Technical Docs (1)
Alternatives for M141T02-AC0305D
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85365007
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00685
