MCPE1-12708AC-S

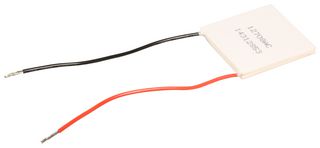

Thermoelectric Peltier Cooler Module, Single Stage, 77.1 W, 8.5 A, 40 mm x 40 mm x 3.45 mm
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MCPE1-12708AC-SCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 1639718 |
| Product Range | MCPE |
| Your Part Number | |
| Technical Datasheet |
59 In Stock
Need more?
59 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM163.720 |
| 3+ | RM140.710 |
| 10+ | RM123.990 |
| 25+ | RM121.530 |
| 100+ | RM115.580 |
Price for:Each
Minimum: 1
Multiple: 1
RM163.72
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MCPE1-12708AC-SCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 1639718 |
| Product Range | MCPE |
| Technical Datasheet | |
| No. of Stages | 1 Stage |
| Cooling Power Pc | 77.1W |
| Current Max @ Diff Temperature Max | 8.5A |
| Voltage Max @ Diff Temperature Max | 15.7VDC |
| Length | 40mm |
| Width | 40mm |
| Depth | 3.45mm |
| Temperature Difference Max | 70°C |
| Product Range | MCPE |
| Internal Resistance | - |
| Lead Wires | UL-Style 1569, Unstripped |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview
Miniature modules available for cooling components such as infra-red detector chips, microwave IC's, fibre-optic lasers and detectors.
- Bespoke designs available
- All types of modules can be bonded using heat sink bonder
- Wide variety of finishes available for specific operating ranges or regimes
- Our standard devices cover a wide range of pellet geometries
- Single-stage modules can create systems which are effective from a few mW to few hundred Watts of cooling power
- Silicone sealed for moisture protection
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Technical Specifications
| No. of Stages | 1 Stage |
|---|---|
| Current Max @ Diff Temperature Max | 8.5A |
| Length | 40mm |
| Depth | 3.45mm |
| Product Range | MCPE |
| Lead Wires | UL-Style 1569, Unstripped |
| Cooling Power Pc | 77.1W |
|---|---|
| Voltage Max @ Diff Temperature Max | 15.7VDC |
| Width | 40mm |
| Temperature Difference Max | 70°C |
| Internal Resistance | - |
| SVHC | No SVHC (21-Jan-2025) |
Technical Docs (1)
Associated Products
4 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84186900 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .025 |
