MCPS25B-3
Pushbutton Switch, 12 mm, SPST, (On)-Off, Round Raised, Red

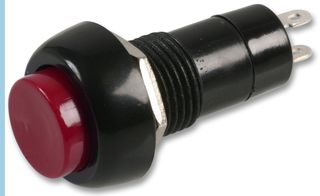

Image is for illustrative purposes only. Please refer to product description.
1,684 In Stock
Need more?
1684 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM6.390 |
| 15+ | RM5.930 |
| 100+ | RM5.620 |
| 500+ | RM4.240 |
| 1000+ | RM4.030 |
Price for:Each
Minimum: 1
Multiple: 1
RM6.39
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoMCPS25B-3
Order Code2913862
Technical Datasheet
Product Range-
Panel Cutout Diameter12mm
Contact ConfigurationSPST
Switch Operation(On)-Off
Pushbutton Actuator StyleRound Raised
Actuator / Cap ColourRed
Contact Current AC Max1A
Contact Voltage VAC125V
Contact Current DC Max-
Contact Voltage VDC-
IP Rating-
Switch MountingPanel Mount
Switch TerminalsSolder Lug
Illumination ColourNon Illuminated
Panel Cutout (H x W)-
SVHCNo SVHC (21-Jan-2025)
Product Overview
MCPS25B-3 is a pushbutton switch features a 12mm round raised design with a Single Pole Single Throw (SPST) configuration. The (On)-Off operation allows for a clear, simple toggle. Its red colour provides high visibility and is ideal for applications requiring quick, intuitive control.
- Compact 12mm size ideal for limited space installations
- SPST (On)-Off configuration ensures straightforward operation
- Raised button design enhances tactile feedback for users
- Bold red colour increases visibility for easy identification
- Durable construction suited for long-term, reliable use in electronics and industrial equipment
Technical Specifications
Product Range
-
Contact Configuration
SPST
Pushbutton Actuator Style
Round Raised
Contact Current AC Max
1A
Contact Current DC Max
-
IP Rating
-
Switch Terminals
Solder Lug
Panel Cutout (H x W)
-
Panel Cutout Diameter
12mm
Switch Operation
(On)-Off
Actuator / Cap Colour
Red
Contact Voltage VAC
125V
Contact Voltage VDC
-
Switch Mounting
Panel Mount
Illumination Colour
Non Illuminated
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85365080
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0055
