MP-APOT-068-06-09(1313)A-M1A
TE Cooler Module, 1.5 A, 7.9V, 7.1 W, 4.89 ohm, 72.9 °C, 30 AWG Solid Bare Wire, 13.2 x 13.2 x 2.4mm

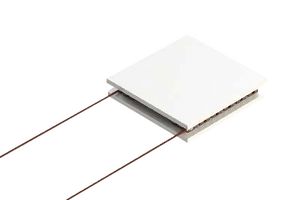

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MP-APOT-068-06-09(1313)A-M1ACopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 4568392 |
| Your Part Number | |
| Technical Datasheet |
8 In Stock
Need more?
8 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM179.550 |
| 3+ | RM154.300 |
| 10+ | RM135.950 |
| 25+ | RM133.230 |
| 100+ | RM126.710 |
Price for:Each
Minimum: 1
Multiple: 1
RM179.55
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MP-APOT-068-06-09(1313)A-M1ACopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 4568392 |
| Technical Datasheet | |
| No. of Stages | - |
| Cooling Power Pc | 7.1W |
| Current Max @ Diff Temperature Max | 1.5A |
| Voltage Max @ Diff Temperature Max | 7.9V |
| Length | 13.2mm |
| Width | 13.2mm |
| Depth | 2.4mm |
| Temperature Difference Max | 72.9°C |
| Product Range | - |
| Internal Resistance | 4.89ohm |
| Lead Wires | 30 AWG Solid Bare |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview
MP-APOT-068-06-09(1313)A-M1A is a thermoelectric cooler module. Applications include laser diodes, optical transceivers, lidar sensors, infrared range (IR) sensors, CMOS sensors, autonomous systems, machine vision, security cameras.
- Precise temperature control, solid-state reliability
- Hot side temperature is 27°C
- Temperature difference is 72.9°C at 300K
- Maximum voltage is 7.9V
- Maximum current is 1.5A, 7.1W cooling power
- Internal resistance is 4.89ohm
- Flatness/parallelism is 0.05 / 0.05mm
- Lead length is 50.8 ±2mm
- Temperature range from -40°C to +120°C
- Dimension is 13.2mm length x 2.4 ±0.127mm height x 13.2mm width
Technical Specifications
| No. of Stages | - |
|---|---|
| Current Max @ Diff Temperature Max | 1.5A |
| Length | 13.2mm |
| Depth | 2.4mm |
| Product Range | - |
| Lead Wires | 30 AWG Solid Bare |
| Cooling Power Pc | 7.1W |
|---|---|
| Voltage Max @ Diff Temperature Max | 7.9V |
| Width | 13.2mm |
| Temperature Difference Max | 72.9°C |
| Internal Resistance | 4.89ohm |
| SVHC | No SVHC (21-Jan-2025) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84186900 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .01 |
